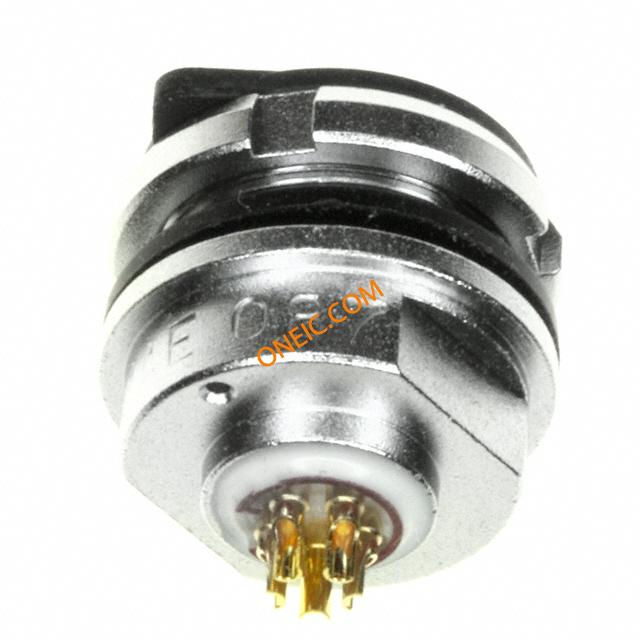

JB5CS05FM00N
| Manufacturer | |
| Description | Standard Circular Connector 5P RECEPT SOLDER CUP W KEY CONN RCPT WATERPROOF 5POS SOLDER CIRCULARCONNECTOR-PANELATTACHEDRECEPTACLE-IP68,5CONTACTSKEYED |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Standard Circular Connector | Standard Package | 80 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 320VAC | Current Rating (Max) | 3A |
Mechanical
| Packaging | Tray | Wire Gauge | 24 |
| Orientation | Keyed | Shell Style | Receptacle |
| Termination | Solder Cup | Mounting Type | Panel Mount, Bulkhead - Front Side Nut |
| Shell Plating | Chromium | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Fastening Type | Push-Pull |
| Mounting Style | Panel | Primary Material | Sealed |
| Termination Style | Solder | Mating Orientation | Push-Pull |
| Number of Contacts | 5 | Number of Positions | 5 |
| Shell Size - Insert | S | Shell Material, Finish | Copper, Chromium Plated |
Product Info
| Type | PanelSocket | Series | JB5 |
| Manufacturer | JB5Series | Product Type | Connectors |
Environmental
| Ingress Protection | IP68 - Dust Tight, Waterproof | Operating Temperature | -55°C ~ 85°C |
