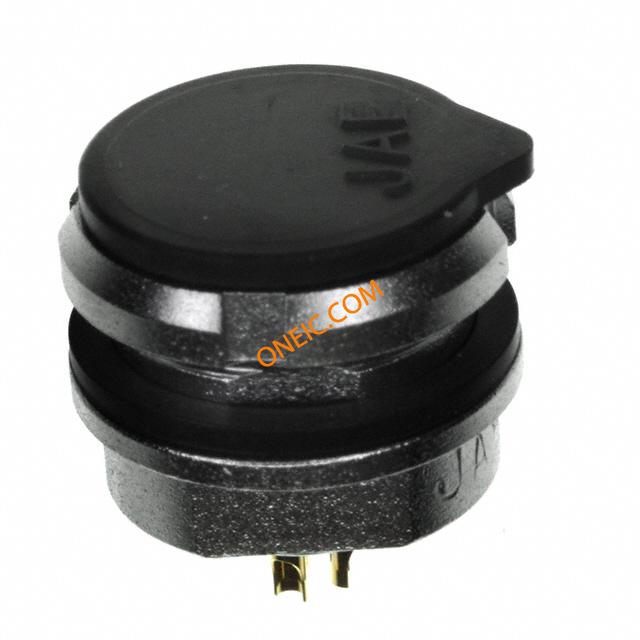

JB5CS03FL00N
| Manufacturer | |
| Description | Standard Circular Connector 3P RECEPT SOLDER CUP W KEY CONN RCPT WATERPROOF 3POS SOLDER CIRCULARCONNECTOR-PANELATTACHEDRECEPTACLE-IP68,3CONTACT,KEYED |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Standard Circular Connector | Standard Package | 80 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 320VAC | Current Rating (Max) | 3A |
Mechanical
| Packaging | Tray | Wire Gauge | 22 |
| Orientation | Keyed | Shell Style | Receptacle |
| Termination | Solder Cup | Mounting Type | Panel Mount, Bulkhead - Front Side Nut |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Fastening Type | Push-Pull | Mounting Style | JamNut |
| Primary Material | Sealed | Mating Orientation | Push-Pull |
| Number of Contacts | 3 | Number of Positions | 3 |
| Shell Size - Insert | S | Shell Material, Finish | Copper, Chromium Plated |
Product Info
| Type | PanelSocket | Manufacturer | JB5Series |
| Product Type | Connectors | ||
Environmental
| Ingress Protection | IP68 - Dust Tight, Waterproof | Operating Temperature | -55°C ~ 85°C |
