IL-AG5-C1-5000
| Manufacturer | |
| Description | Automotive Connectors TIN SCKT CONTACT CONN SOCKET 22-18AWG TIN CRIMP Contact;Socket;Crimp;22-20AWG;CopperAlloy;IL-AG5Series |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Contacts | Other Names | 670-1785-1 |
| Product Category | Automotive Connectors | Standard Package | 5,000 |
| Factory Pack Quantity | 5000 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 3 A | Insulation Resistance | 100 MOhms |
Mechanical
| Packaging | Reel | Wire Gauge | 18-22 AWG |
| Mounting Type | Straight | Pin or Socket | Socket |
| Contact Finish | Tin | Mounting Style | Wire |
| Contact Material | Phosphor Bronze | Termination Style | Crimp |
| Contact Termination | Crimp | Number of Positions | 1 |
Product Info
| Gender | Female | Series | ILAG5 |
| Features | Mechanical lock system enabling complete mating | ||
Environmental
| Operating Temperature | - 40 C to + 85 C | ||
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
Similar Parts
IL-AG9-3S-S3C1
JAE Electronics
Automotive Connectors 3P Sckt HOUSING 2.5mm CONN SOCKET 3POS HOUSING 2.5MM 03P FEMALE HOUSING GREEN
$2.2100
Details

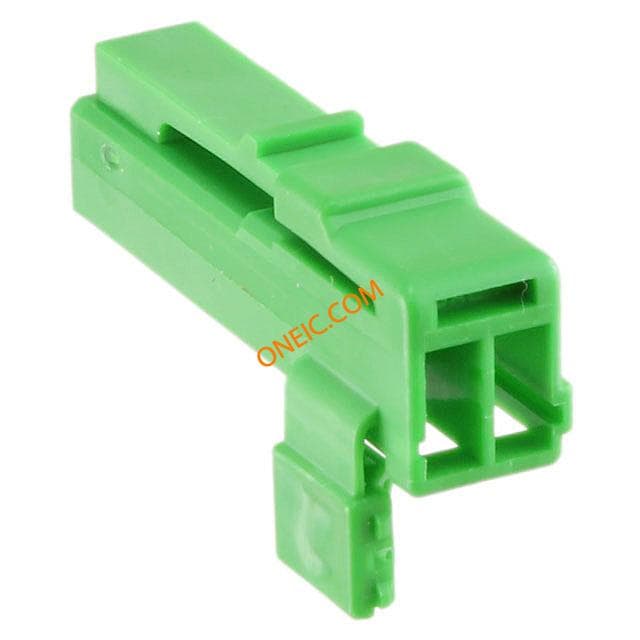

IL-AG9-2S-S3C1
JAE Electronics
Automotive Connectors 2P Sckt HOUSING CONN SOCKET 2POS 2.5MM 22-18AWG IL-AG92waysocketinline 02P FEMALE HOUSING GREEN
$0.9792
Details
CT150-1-AG5
JAE Electronics
CRIMP TOOL #18-22AWG IL-AG5 HADNTOOLIL-AG5/IL-AG9SERIES
$3522.2096
Details
3502-AG5-2
JAE Electronics
TOOL DIE CRIMP FOR IL-AG5 SERIES
Details
