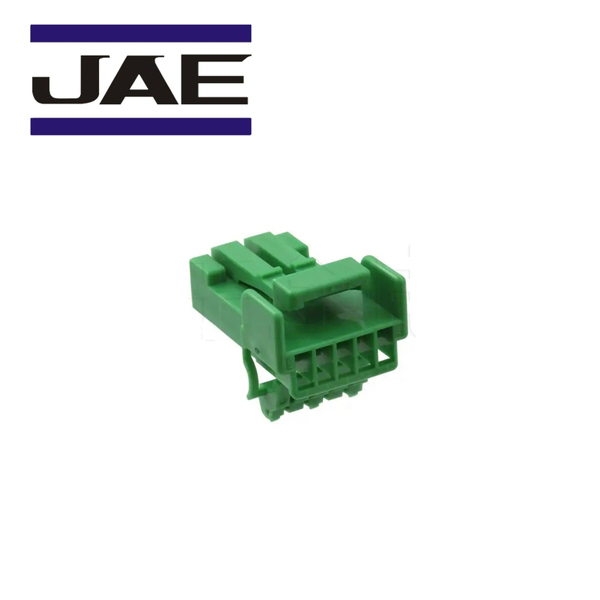

IL-AG5-5S-S3C1
| Manufacturer | |
| Description | Automotive Connectors 5P Sckt HOUSING CONN SOCKET 5POS SNGL STR CRIMP Conn;Rect;Socket;5Cont;Crimp;IL-AG5Series;2.5mmPin-Spng;22-18AWG;Green;PBT 05P FEMALE HOUSING 1 ROW |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Connectors | Product Category | Automotive Connectors |
| Standard Package | 1,600 | Factory Pack Quantity | 1600 |
Compliance
| RoHS | RoHS Compliant | Automotive | CERTIFICAT |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Current Rating (Max) | 3 A | ||
Mechanical
| Color | Green | Pitch | 0.098" (2.50mm) |
| Packaging | Bulk | Weight (g): | 3.5 |
| Contact Type | Female Socket | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle | Contact Finish | Tin |
| Mounting Style | Wire | Number of Rows | 1 |
| Contact Material | Phosphor Bronze | Housing Material | Polybutylene Terephthalate (PBT) |
| Termination Style | Crimp | Number of Contacts | 05 |
| Contact Termination | Crimp | Number of Positions | 5 |
| Wire Gauge or Range - AWG | 22 to 18 | ||
Product Info
| Name | 护套 | Note | Contacts Not Provided |
| Unit | PCS | Gender | Female |
| Series | IL-AG5 | Quantity | 1600.0 |
| Manufacturing Country | 日本 | Minimum Order Quantity | 1 |
Environmental
| Operating Temperature | - 40 C to + 85 C | ||
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
Similar Parts
IL-AG5-5P-S3C1
JAE Electronics
Automotive Connectors Pin HOUSING 2.5MM 5P CONN PIN 5POS HOUSING 2.5MM IL-AG5,5WHDRIN-LCTOC 5P PIN HOUSING 1 ROW
$2.7404
Details
IL-AG5-5P-S3L2
JAE Electronics
Automotive Connectors 5P Pin Header 2.5mm R/A CONN PIN HEADER 2.5MM 5POS R/A IL-AG5,5WHDRR/A2.5MM 5P 90° PIN HEADER 1 ROW
$2.1692
Details

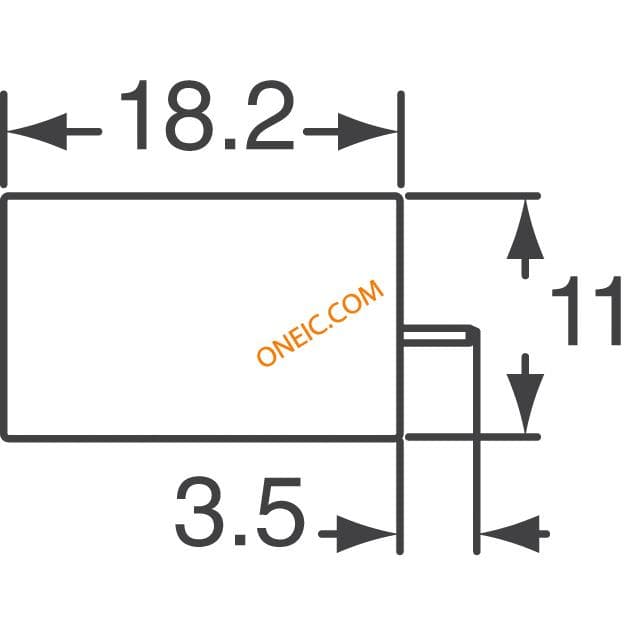

IL-AG5-5P-S3T2
JAE Electronics
Automotive Connectors 5P Pin Header 2.5mm CONN PIN HEADER 2.5MM 5POS T/H IL-AG5,5WHDRSTRT2.5MM 05P PIN HEADER 1 ROW GREEN
$3.9780
Details

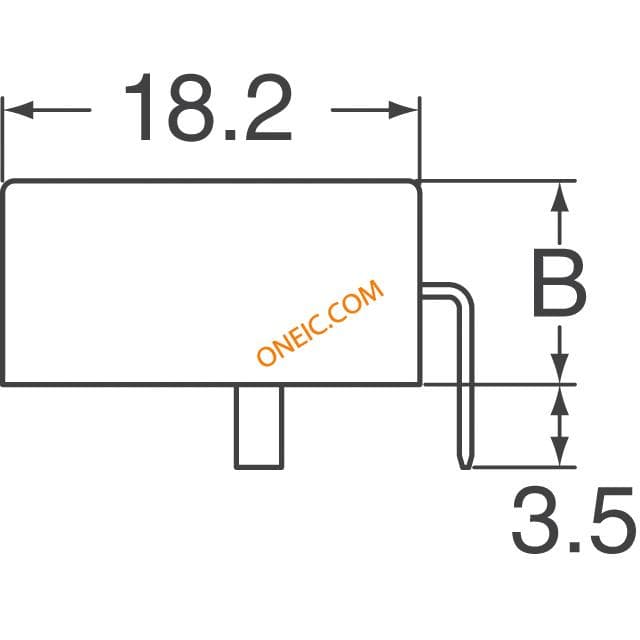

IL-AG5-5PK-S3L2-LB
