IL-AG5-30P-D3L2
| Manufacturer | |
| Description | Automotive Connectors 30P Pin Header 2.5mm R/A CONN PIN HEADER 2.5MM 30POS R/A IL-AG5,30WHDRR/A2.5MM 30P 90° PIN HEADER 2 ROWS |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Connectors | Product Category | Automotive Connectors |
| Standard Package | 420 | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | Automotive | CERTIFICAT |
| Leadfree Defin | RoHS-conform | ||
Mechanical
| Color | Green | Pitch | 0.098" (2.50mm) |
| Packaging | Bulk | Row Spacing | 0.118" (3.00mm) |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Through Hole, Right Angle | Connector Type | Header, Shrouded |
| Contact Finish | Tin | Mounting Style | Through Hole |
| Number of Rows | 2 | Contact Material | Copper Alloy |
| Housing Material | Polybutylene Terephthalate (PBT) | Material - Frame | PBT |
| Termination Style | Solder | Number of Contacts | 30 |
| Number of Positions | 30 | Contact Length - Mating | 0.331" (8.40mm) |
Product Info
| Gender | Male | Series | IL-AG5 |
| Features | Board Guide | Number of Positions Loaded | All |
Documents & Media
PDF Document
PDF Document
Similar Parts

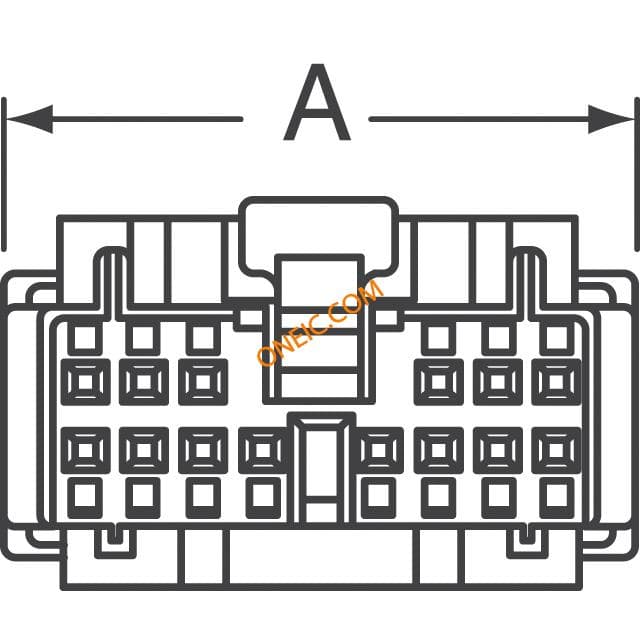

IL-AG5-30S-D3C1
