IL-312-A30P-VF-A1
| Manufacturer | |
| Description | Board to Board & Mezzanine Connectors Plug 0.5MM 30P STR CONN HEADER 30POS 0.5MM SMD PCBTOPCBPLUG,.5MMPITCH,30CONTACTS |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 100 | ||
Compliance
| RoHS | RoHS Compliant Part | ||
Electrical
| Voltage Rating | 200/300VAC/VDC | Current Rating (Max) | 0.3A |
Mechanical
| Color | Black | Pitch | 0.020" (0.50mm) |
| Packaging | Tray | Cable Exit | LowProfile |
| Termination | SMT | Length - Pin | 0.5mm |
| Mounting Type | Surface Mount | Angle of Throw | Straight |
| Connector Type | Plug, Center Strip Contacts | Contact Finish | Gold |
| Number of Rows | 2 | Contact Material | CopperAlloy |
| Housing Material | Plastic | Length - Overall | 8.6mm |
| Primary Material | BoardtoBoard | Pin Hole Diameter | 0.5mm |
| Height Above Board | 0.061" (1.55mm) | Number of Contacts | 30 |
| Number of Positions | 30 | Mated Stacking Heights | 2.5mm, 3mm |
| Contact Finish Thickness | 3.9µin (0.10µm) | ||
Product Info
| Type | PCBPlug | Features | Solder Retention |
| Manufacturer | IL-312Series | ||
Environmental
| Operating Temperature | -40to+85°C | ||
Documents & Media
PDF Document
PDF Document
PDF Document
Similar Parts
IL-312-A30S-VFH05-A1
JAE Electronics
Board to Board & Mezzanine Connectors 30p Recep Straight CONN RCPT 30POS 0.5MM SMD
$10.0388
Details

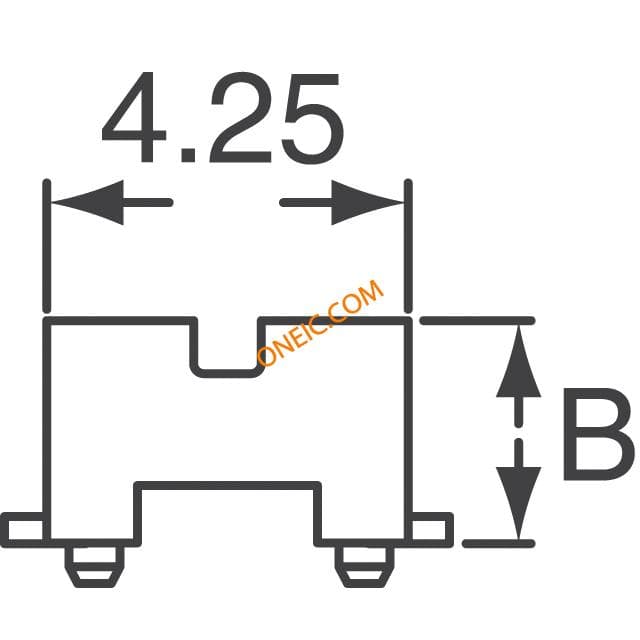

IL-312-A30SB-VFH05-A1
