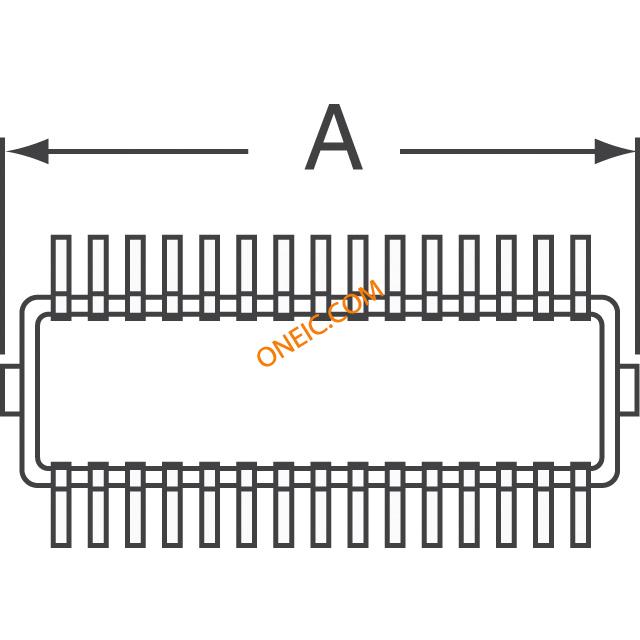

IL-312-30P-VF30-A1
| Manufacturer | |
| Description | Board to Board & Mezzanine Connectors 30p PCB to PCB CONN HEADER 30POS 0.5MM SMD PCBTOPCBPLUG,.5MMPITCH,30CONTACTS |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 100 | ||
Compliance
| RoHS | RoHS Compliant Part | ||
Electrical
| Current Rating (Max) | 0.3A | ||
Mechanical
| Color | Black | Pitch | 0.020" (0.50mm) |
| Packaging | Tray | Termination | SMT |
| Length - Pin | 0.5" | Mounting Type | Surface Mount |
| Angle of Throw | Straight | Connector Type | Plug, Center Strip Contacts |
| Contact Finish | Gold | Number of Rows | 2 |
| Contact Material | CopperAlloy | Housing Material | Plastic |
| Length - Overall | 9.25mm | Primary Material | BoardtoBoard |
| Pin Hole Diameter | 0.02" | Height Above Board | 0.081" (2.05mm) |
| Number of Contacts | 30 | Number of Positions | 30 |
| Mated Stacking Heights | 3mm, 3.5mm | Mounting Hole Diameter | 0.031" |
| Contact Finish Thickness | 3.9µin (0.10µm) | ||
Product Info
| Type | PCBPlug | Features | Solder Retention |
| Manufacturer | IL-312Series | ||
Environmental
| Operating Temperature | -40to+85°C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts
IL-312-A30S-VFH05-A1
JAE Electronics
Board to Board & Mezzanine Connectors 30p Recep Straight CONN RCPT 30POS 0.5MM SMD
$10.0388
Details

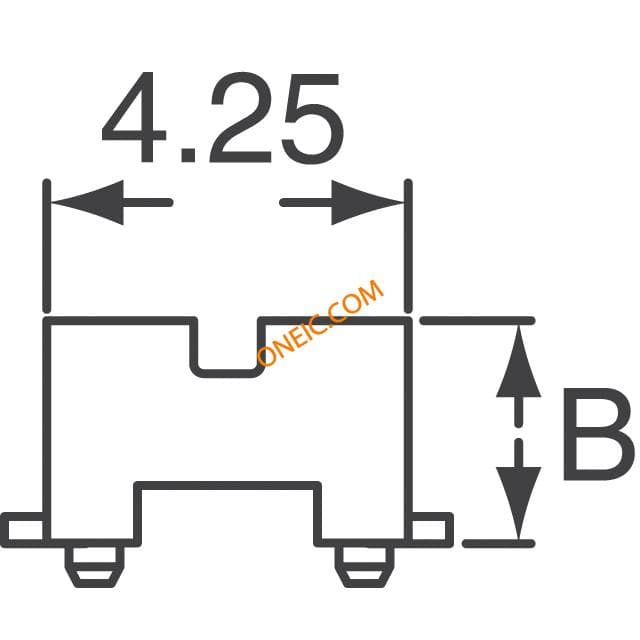

IL-312-A30SB-VFH05-A1
