点击放大查看

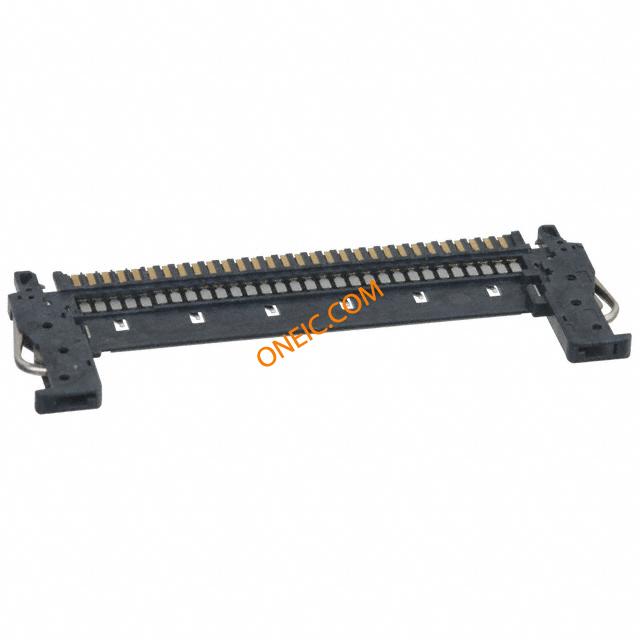

FI-X30MR-NPB
| Manufacturer | |
| Description | FFC & FPC Connectors 1.0mm 30P CABLE PLUG LOWER SIDE CONTACT CONN PLUG FFC 1MM 30POS 30W,1.25MM,LVDSSIDEPLG 30P FFC/FPC CONNECTOR 1.00MM |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | FFC & FPC Connectors | Standard Package | 50 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | Automotive | NO |
| Leadfree Defin | RoHS-conform | Material Flammability Rating | UL94 V-0 |
Electrical
| Voltage Rating | 200V | Current Rating (Max) | 1A |
| Insulation Resistance | 100 MOhms | ||
Mechanical
| Color | Beige | Pitch | 0.039" (1.00mm) |
| Packaging | Bulk | Termination | Solder |
| Contact Type | 1.00 mm | Pitch - Post | FEMALE |
| Mounting Type | Right | Connector Type | Plug |
| Contact Finish | Gold | Mounting Style | Cable |
| Number of Rows | 01 | Contact Material | Copper Alloy |
| Housing Material | Polyamide (PA46), Nylon 4/6, Glass Filled | Termination Style | SMD |
| FFC, FCB Thickness | 0.14mm | Number of Contacts | 30 |
| Number of Positions | 30 | Contact Layout, Typical | Top Contact |
| Contact Finish Thickness | 3.9µin (0.10µm) | Contact Material - Plating | R/A |
Product Info
| Gender | Male | Series | FI |
| Features | Zero Insertion Force (ZIF) | Product Type | Free Hanging |
Environmental
| Temperature Range | - 40 C to + 85 C | Operating Temperature | -40°C ~ 80°C |
Documents & Media
PDF Document
PDF Document
