点击放大查看

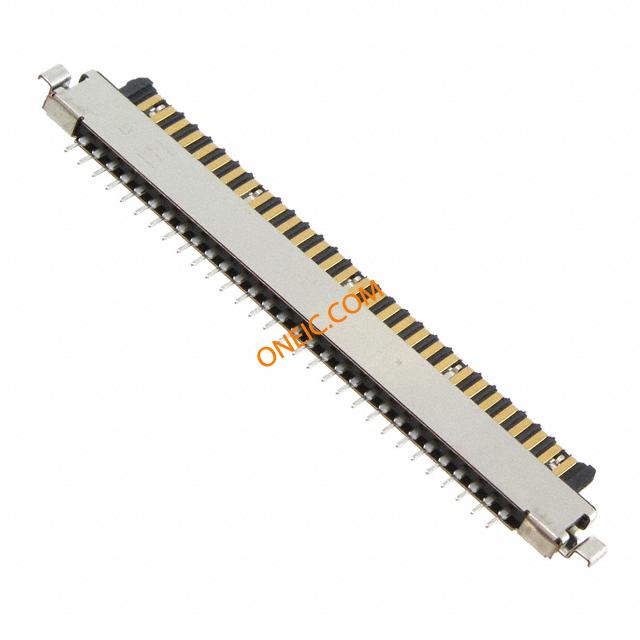

FI-X30FR
| Manufacturer | |
| Description | FFC & FPC Connectors 30 POS. CABLE PLUG CONN PLUG 1MM 30POS R/A |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | FFC & FPC Connectors | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 200V | Current Rating (Max) | 1A |
Mechanical
| Pitch | 0.039" (1.00mm) | Packaging | Bulk |
| Termination | Solder | Mounting Type | Board Cutout, Surface Mount |
| Connector Type | Bottom Contacts | Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP) | Termination Style | SMD |
| FFC, FCB Thickness | 0.14mm | Number of Contacts | 30 |
| Number of Positions | 30 | Contact Layout, Typical | Bottom Contact |
| Contact Finish Thickness | 27.6µin (0.70µm) | ||
Product Info
| Series | FI-X | Features | Solder Retention |
| Product Type | Free Hanging | ||
Environmental
| Temperature Range | - 40 C to + 80 C | Operating Temperature | -40°C ~ 80°C |
Documents & Media
PDF Document
