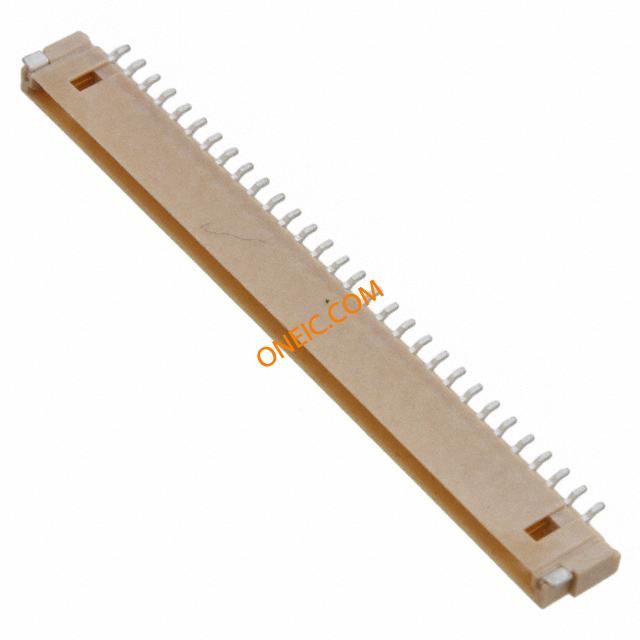

FI-S30P-HFE
| Manufacturer | |
| Description | FFC & FPC Connectors 30p PCB to Cable LCD Compatible CONN RCPT 1.25MM 30POS SMD R/A PCBTOCABLERECEPTACLE-LCDCOMPATIBLE,1.25MMPITCH,30CONTACTS 30 WAY 90° HEADER |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | FFC & FPC Connectors | Standard Package | 50 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | Automotive | NO |
| Leadfree Defin | RoHS-conform | Material Flammability Rating | UL94V-0 |
Electrical
| Current Rating (Max) | 1 A | ||
Mechanical
| Color | Beige | Pitch | 0.049" (1.25mm) |
| Packaging | Tray | Cable Exit | LowProfile |
| Wire Gauge | 32-28 | Termination | Solder |
| Contact Type | Male Pin | Length - Pin | 1.45mm |
| Mounting Type | Surface Mount, Right Angle | Angle of Throw | Right |
| Connector Type | Receptacle | Contact Finish | Gold |
| Fastening Type | Friction Lock | Number of Rows | 1 |
| Contact Material | Copper Alloy | Housing Material | Polyphenylene Sulfide (PPS) |
| Length - Overall | 41.1mm | Primary Material | BoardtoCable |
| Pin Hole Diameter | 1.25mm | Termination Style | SMD |
| Number of Contacts | 30 | Number of Positions | 30 |
| Contact Material - Plating | GOLD | ||
Product Info
| Type | CableSocket | Gender | Female |
| Series | FI | Features | Solder Retention |
| Manufacturer | FISeries | Product Type | Board Mount |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -40to+80°C | ||
