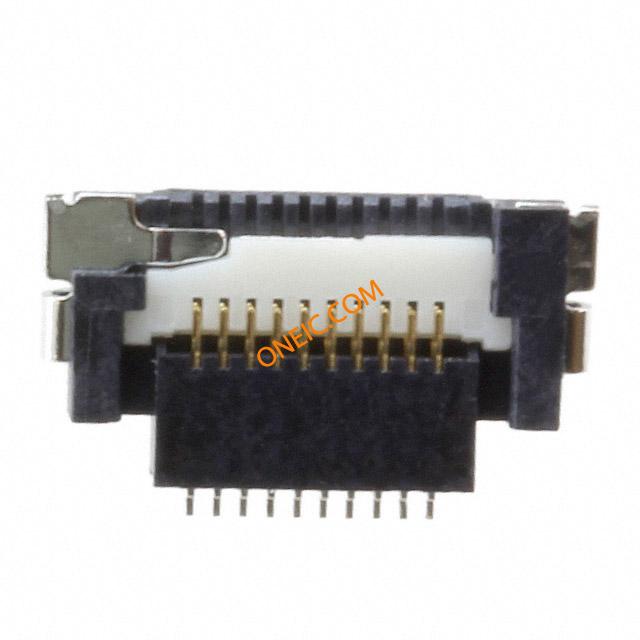

FA5S010HP1
| Manufacturer | |
| Description | FFC & FPC Connectors .50mm 10P RT ANGLE SURFACE MT CONN FFC/FPC 0.5MM 10POS R/A SMD LOWPROFILEPCB-TO-FPC,.5MMPITCH,10CONTACTS,RIGHTANGLE 10P ZIF CONNECTOR 0,5MM GOLD |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | FFC & FPC Connectors | Standard Package | 83 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | Automotive | NO |
| Leadfree Defin | RoHS-conform | Material Flammability Rating | UL94V-0 |
Electrical
| Current Rating (Max) | 0.800A (per Contact) | ||
Mechanical
| Color | Black | Pitch | 0.5 mm |
| Packaging | Tray | Wire Type | FPC |
| Cable Exit | LowProfile | Termination | Solder |
| Length - Pin | 0.85mm | Pitch - Post | FEMALE |
| Mounting Type | Surface Mount, Right Angle | Angle of Throw | Right |
| Cable End Type | Tapered | Connector Type | Bottom Contacts |
| Contact Finish | Gold | Number of Rows | 1 |
| Locking Feature | Flip Lock | Contact Material | CopperAlloy |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | Length - Overall | 10.7mm |
| Primary Material | BoardtoFPC | Pin Hole Diameter | 0.5mm |
| FFC, FCB Thickness | 0.30mm | Height Above Board | 0.057" (1.45mm) |
| Number of Contacts | 10 | Number of Positions | 10 |
Product Info
| Type | PCBPlug | Series | FA5 |
| Features | Solder Retention, Zero Insertion Force (ZIF) | Manufacturer | FA5Series |
| Product Type | Board Mount | ||
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
