TST24PA00
| Manufacturer | |
| Description | Conn Housing PL 24 POS Crimp ST Cable Mount PLUG, FREE, 24WAY CONN PLUG HSG 24POS |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Voltage - Working | :250VAC | Current Rating (Max) | 13 A |
| Current - Max/Contact | :13A | Insulation Resistance | :5000Mohm |
| Voltage - Supply (Min) | 250VAC | ||
Mechanical
| Color | Black | Depth | 33 mm |
| Pitch | 0.200" (5.08mm) | Height | 24 mm |
| Weight | 0.0014 | Packaging | Bulk |
| Row Spacing | 0.200" (5.08mm) | Weight (g): | 14.80000 |
| Contact Type | Male or Female | Housing Color | Black |
| Mounting Type | Straight | Connector Type | Plug |
| Fastening Type | Latch Lock | Number of Rows | 4 |
| Material Finish | :- | Housing Material | Nylon |
| Length - Overall | 42 mm | Number of Contacts | 24 |
| Contact Termination | Crimp and Solder | Number of Positions | :24 |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Series | :TRIDENT |
Environmental
| Operating Temperature | -55C to 105C | ||
Documents & Media
Similar Parts
192923-6040
itt interconnect solutions
Conn Housing RCP 12 POS Crimp ST Panel Mount TRI SNAP 24 CONT RECP PANEL QM Black nylon 24way chassis shell,typeB ITT Cannon 192923 系列 4 行 24 路 直 母 PCB 壳体
192990-0020
itt interconnect solutions
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT TIN PIN 24-26AWG ITT Cannon T2P Series Tin Plated Crimp Pin Connector, 26 to 24AWG CONTACT, PIN, 26-24 AWG, CRIMP PINCONTACT24-28AWG ITT Cannon T2P 系列 公 压接端接 圆形 连接器 触芯, 使用于Trident T2P 触点系统, 26 → 24 AWG 线规格

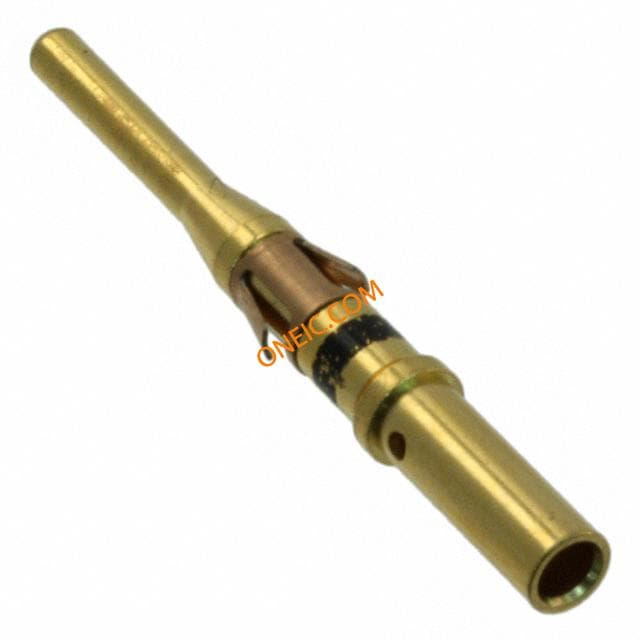

192991-0160
itt interconnect solutions
Contact PIN Crimp ST Cable Mount Loose Piece CONN CONTACT EARTH PIN 16AWG GOL TRI CON PIN 16 FMLB MACH NOINS ((NW)) Earth crimp contact, pin AWG 16, 192991-0160, ITT Corporation
192900-0632
itt interconnect solutions
Contact PIN Solder ST Cable Mount Loose Piece CONTACT TIN SOLDER CUP PIN Male Circular Connector Contact, Solder SOLDER PIN, 13A, TIN TINSOLDAPINCONTACTS ITT Cannon 公 焊接端接 圆形 连接器 触芯, 26 → 14 AWG 线规格

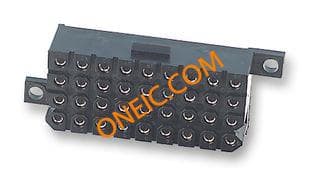

TST24RB02T
itt interconnect solutions
Conn Rectangular SKT 24 POS 5.08mm Solder ST Thru-Hole SOCKET, PCB, 24WAY CONN RCPT PCB 24POS TIN SCKT
TST24AH00
itt interconnect solutions
Connector Accessories Plug Strain Relief Hood 24 POS STRAIN RELIEF, 24WAY

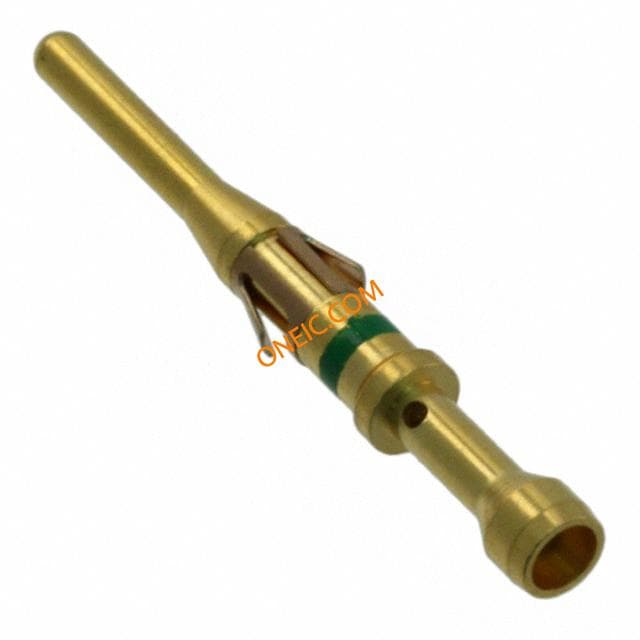

192991-0089
ITT Cannon
TRI CON PIN 20 HGLD MACH THICK
192900-0407
ITT Cannon
TRI CON SKT 14AWG GOLD
T3P26MC1LX
ITT CANNON
CRIMP PIN, GOLD, 26AWG CONN CONTACT PIN 26AWG GOLD
TST24RA00
ITT CANNON
SOCKET, PANEL MOUNT, 24WAY
TST24RB01T
ITT CANNON
PLUG, PCB, 24WAY CONN RECEPT PCB 24POS TIN PIN
TST24RB06T
ITT CANNON
SOCKET, PCB, 24WAY CONN RCPT PCB 24POS TIN SCKT
TST24RB05T
ITT CANNON
Conn Rectangular PIN 24 POS 5.08mm Solder ST Thru-Hole CONN RCPT PCB 24POS TIN PIN
TST24RB01Z
ITT Interconnect Solutions
192990-0630 GOLD PLATED - PCB PIN CONNECTORS CONN RECEPT PCB 24POS GOLD PIN
TST24RB06Y
ITT Interconnect Solutions
192900-0423 CONN RCPT PCB 24POS GOLD SCKT

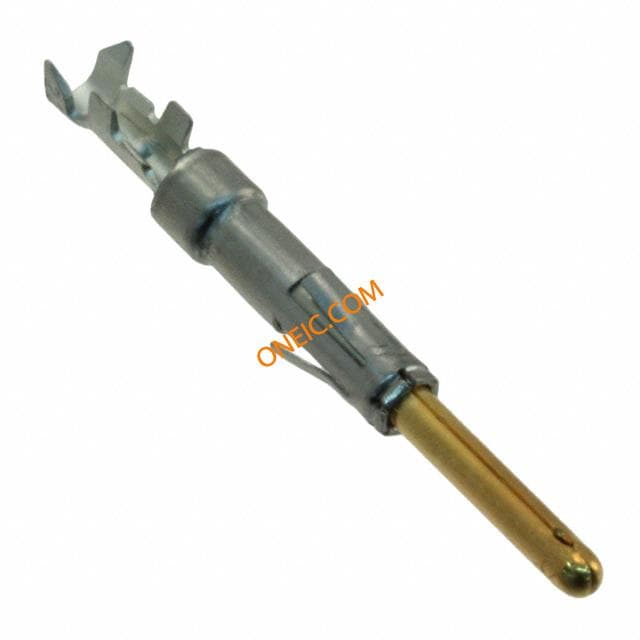

T2P20MC1LY
