TR1807PMS1NBE
| Manufacturer | |
| Description | Conn Ringlock Circular PIN 7 POS ST Cable Mount 7 Terminal 1 Port PLUG, FREE, 7WAY |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85369010 |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage Rating | :250V | Voltage - Working | :250VAC |
| Current - Max/Contact | :13A | Insulation Resistance | :5000Mohm |
Mechanical
| Weight | 0.03575 | Mounting Type | Cable Mount |
| Connector Type | :Circular Industrial | Insertion Angle | :18-07 |
| Locking Feature | :Copper Alloy | Material Finish | :- |
| 1st Contact Gender | :Pin | Number of Positions | :7 |
| Shell Size - Insert | :18 | 1st Connector Mounting Type | :Cable |
Product Info
| Type | Ringlock Circular | Gender | PL |
| Series | :TRIDENT Ringlock | Measuring Range | :18 |
Environmental
| NEMA Frame Size | :IP65 | Operating Temperature | :105°C |
Documents & Media
Similar Parts
192990-1240
itt interconnect solutions
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 14-16AWG TIN ITT T2P Series Tin Plated Crimp Pin Connector, 16 to 14AWG CRIMP PIN, TIN, 16-14AWG ITT T2P 系列 公 压接端接 圆形 连接器 触芯, 16 → 14 AWG 线规格

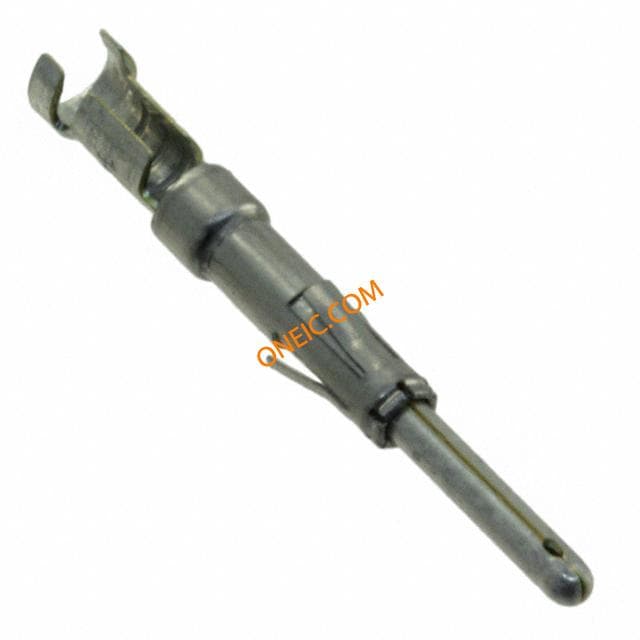

192990-0060
itt interconnect solutions
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT TIN PIN 16-18AWG CONTACT, PIN, 18-16 AWG, CRIMP CONTACT, PIN, 20-16AWG, CRIMP

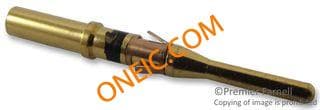

T3P16MC1LX
itt interconnect solutions
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP ST CABLE MOUNT LOOSE PIECE CIRCULAR CONTACT, PIN, 16 AWG, CRIMP CONTACT GOLD PIN 16AWG
T3P20MC1LX
itt interconnect solutions
Contact PIN Crimp ST Cable Mount Loose Piece CRIMP PIN, GOLD, 20AWG
TR1807RFH1NBE
itt interconnect solutions
Conn Ringlock Circular SKT 7 POS Crimp ST Panel Mount 7 Terminal 1 Port SOCKET, PANEL, 7WAY

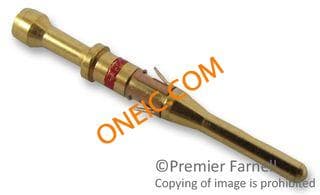

T3P22MC1LX
