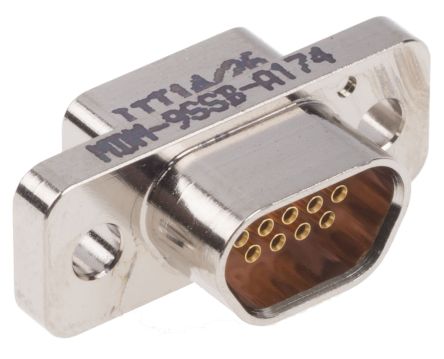

MDM-9SSB-A174
| Manufacturer | |
| Description | Conn Micro D-Subminiature SKT 9 POS Solder Pot ST Panel Mount 9 Terminal 1 Port MICRO 9POS SKT SOLDER CUP Micro D Conn, 9w, solder pot contacts ITT Cannon MDM 系列 面板安装 DB9 9 路 Micro-D 焊接连接器 插座 , 3A |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | ||
Electrical
| Current Rating (Max) | 3A | ||
Mechanical
| Depth | 10.09mm | Pitch | 0.05in |
| Width | 7.82mm | Length | 19.94mm |
| Packaging | Bulk | Orientation | 直 |
| Termination | Solder Pot | Weight (g): | 1.33854 |
| Contact Size | 24 | Contact Type | Signal |
| Mounting Type | Panel Mount | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Flange Feature | Housing/Shell (Unthreaded) |
| Number of Rows | 2 | Connector Style | D-Type, Micro-D |
| Contact Material | Copper Alloy | Housing Material | Liquid Crystal Polymer (LCP) |
| Size / Dimension | 19.94 x 7.82 x 10.09mm | Number of Contacts | 9 |
| Number of Positions | 9 | Shell Material, Finish | Aluminum, Nickel Plated, Electroless |
| Shell Size, Connector Layout | 0.050 Pitch x 0.043 Row to Row | ||
Product Info
| Type | Micro D-Subminiature | Gender | SKT |
| Series | MDM | Features | Shielded |
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
