KPT06A12-10SW
| Manufacturer | |
| Description | Conn MIL-C-26482 Circular SKT 10 POS Solder ST Cable Mount 10 Terminal 1 Port CONN PLUG 10POS W/SKT CABLE CONNECTOR, CIRCULAR, SIZE 12, 10WAY |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | Approval Agency | :VG95328 |
Electrical
| Voltage Rating | 600VAC, 850VDC | Current Rating (Max) | 7.5A |
Mechanical
| Weight | 0.001 | Packaging | Bulk |
| Orientation | W | Termination | Solder |
| Weight (g): | 24.35000 | Mounting Type | Cable Mount |
| Connector Type | Plug, Female Sockets | Contact Finish | Gold |
| Fastening Type | Bayonet Lock | Package / Case | :Straight Plug |
| Insertion Angle | :12-10 | Material - Body | :Aluminium |
| Contact Material | :Copper | 1st Contact Gender | :Socket |
| Number of Contacts | :10 | Contact Termination | :Solder |
| Number of Positions | 10 | Shell Size - Insert | 12-10 |
| Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated | Contact Finish Thickness | 50µin (1.27µm) |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | MIL-C-26482 Circular | Gender | PL |
| Series | :KPT | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Online Document
Online Document
PDF Document
PDF Document
Similar Parts
KPT07A12-10PW
itt interconnect solutions
Conn MIL-C-26482 Circular PIN 10 POS Solder ST Jam Nut 10 Terminal 1 Port CONN RCPT 10POS W/PIN JAM NUT CONNECTOR, CIRCULAR, 10WAY, SIZE 12
$236.9528
Details
KPT02A12-10PW
itt interconnect solutions
Conn MIL-C-26482 Circular PIN 10 POS Solder ST Box Mount 10 Terminal 1 Port CONN RCPT 10POS W/PIN BOX
$203.4064
Details
KPT04A12-10PW
ITT Cannon
CONN RCPT 10POS W/PIN CABLE CIRCULAR, SIZE 12, 10 WAY PIN
$151.2320
Details
KPSE02A12-10PW
ITT Cannon
CONN RCPT 10POS BOX MNT W/PINS
$99.5724
Details

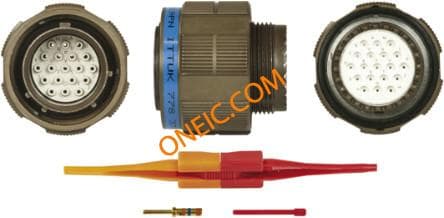

KPSE01B12-10PW
