KPSE06B14-5PY
| Manufacturer | |
| Description | Conn MIL-C-26482 Circular PIN 5 POS Crimp ST Cable Mount 5 Terminal 1 Port CONN PLUG 5POS CABLE PIN CONNECTOR, CIRCULAR, SIZE 14, 5WAY |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | KPSE06B145PY | Standard Package | Bulk |
Compliance
| RoHS | Contains lead / RoHS non-compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | Approval Agency | :MIL-C-26482 |
Electrical
| Voltage Rating | 1000VAC, 1400VDC | Current Rating (Max) | 13A |
Mechanical
| Weight | 0.001 | Packaging | Bulk |
| Orientation | Y | Termination | Crimp |
| Weight (g): | 39.96500 | Mounting Type | Cable Mount |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Fastening Type | Bayonet Lock | Package / Case | :Straight Plug |
| Insertion Angle | :14-5 | Material - Body | :Aluminium |
| Contact Material | :Copper | 1st Contact Gender | :Pin |
| Number of Contacts | :5 | Contact Termination | :Crimp |
| Number of Positions | 5 | Shell Size - Insert | 14-5 |
| Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated | Contact Finish Thickness | 50µin (1.27µm) |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | MIL-C-26482 Circular | Gender | PL |
| Series | :KPSE | Features | Strain Relief |
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
PDF Document
Online Document
PDF Document

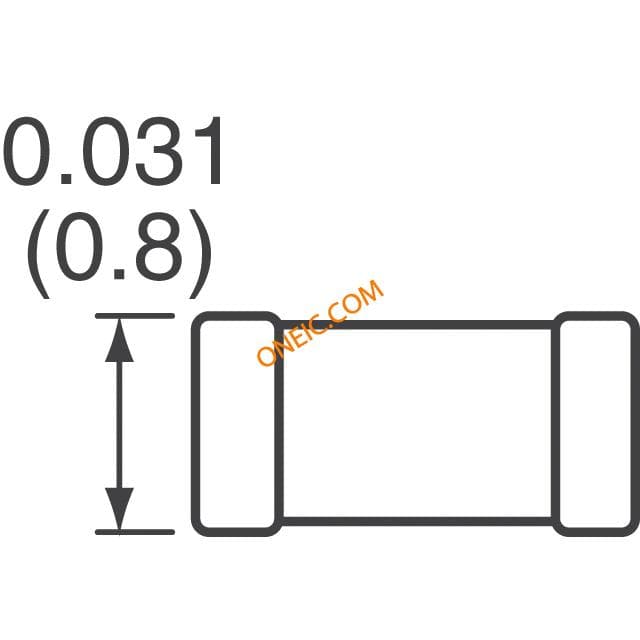

1608-Series_0.8mm-Thickness-Side.jpg&w=3840&q=75)
