DLM2-96P
| Manufacturer | |
| Description | Conn Rectangular PIN 96 POS 2.54mm Crimp ST Cable Mount Conn Rectangular PIN 96 POS Crimp ST Cable Mount DLM 96C SHIELDED PLUG ZIF 96 way rect metal plug body,5A 127050-0212 |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Vendor undefined / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | ||
Electrical
| Voltage Rating | 1200 V ac | Current Rating (Max) | 5A |
Mechanical
| Depth | 74.75mm | Pitch | 2.54 mm |
| Width | 28.12mm | Height | 74.75 |
| Length | 65.8mm | Weight | 0 |
| Packaging | Bulk | Termination | Crimp |
| Weight (g): | 54.80000 | Mounting Type | Cable Mount |
| Connector Type | Housing, Non Gendered | Contact Finish | Gold |
| Number of Rows | 8 | Connector Style | Drawer |
| Connector Usage | Plug | Contact Material | Beryllium Copper |
| Housing Material | Metal | Length - Overall | 65.8 |
| Size / Dimension | 65.8 x 28.12 x 74.75mm | 1st Contact Gender | PIN |
| Number of Contacts | 96 | Number of Positions | 96 |
Product Info
| Note | Contacts Not Provided | Type | Rectangular |
| Gender | PL | Series | DLM |
| Features | Actuating Camshaft | ||
Environmental
| Operating Temperature | +105°C | ||
Documents & Media
Similar Parts
030-2410-003
itt interconnect solutions
Contact PIN Crimp ST Cable Mount T/R CONN CONTACT MALE 24-26AWG GOLD MS Series Male Circular Connector Contact, Crimp Contact PIN Crimp ST Cable Mount CRIMP PIN, DLM, 24-26AWG ITT Cannon MS 系列 公 压接端接 圆形 连接器 触芯, 使用于ZIF 连接器, 26 → 24 AWG 线规格
030-2416-003
itt interconnect solutions
Contact PIN Crimp ST Cable Mount T/R CONN CONTACT BUMP 28-32AWG GOLD
030-2410-001
itt interconnect solutions
Contact PIN Crimp ST Cable Mount T/R CONN CONTACT BUMP 24-26AWG GOLD MS Series Male Circular Connector Contact, Crimp CONTACT, PIN, 26-24 AWG, CRIMP CRIMPCONTACTS24/26AWG ITT Cannon DL 系列 公 压接端接 圆形 连接器 触芯, 使用于ZIF 连接器, 24 → 26 AWG 线规格
030-2416-001
itt interconnect solutions
Contact PIN Crimp ST Cable Mount T/R DL CONT CRIMP 28-32 20AU CONTACT, PLUG & RCPT, 32-28AWG, CRIMP
030-2415-003
itt interconnect solutions
Contact PIN Crimp ST Cable Mount T/R DL CONT CRIMP 18-20 50AU CONTACT, PLUG, 20-18AWG, CRIMP

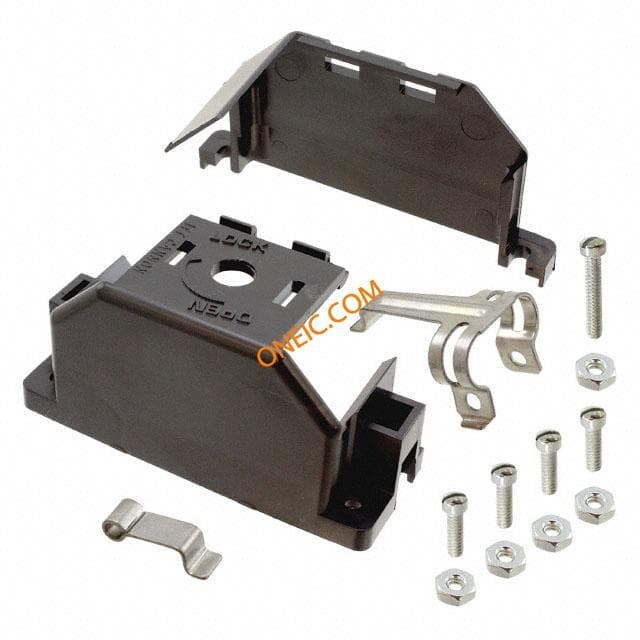

249-1985-000
