DLM1-156P
| Manufacturer | |
| Description | Conn Housing M 156 POS 2.54mm Crimp ST Cable Mount DLM 156C SHIELDED PLUG ZIF 156 way rect metal plug body,5A Conn Rectangular PL 156 POS 2.54mm Crimp ST Cable Mount |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Vendor undefined / RoHS Compliant | ||
Electrical
| Voltage Rating | 1200 V ac | Current Rating (Max) | 5A |
Mechanical
| Depth | 90mm | Pitch | 2.54 mm |
| Width | 24.8mm | Height | 90 mm |
| Length | 108mm | Packaging | Bulk |
| Termination | Crimp | Weight (g): | 80.40000 |
| Mounting Type | Straight | Connector Type | Housing, Non Gendered |
| Contact Finish | Gold | Mounting Style | Cable |
| Number of Rows | 6 | Connector Style | Drawer |
| Connector Usage | Plug | Contact Material | Beryllium Copper |
| Housing Material | Aluminium Alloy | Length - Overall | 108 mm |
| Size / Dimension | 108 x 24.8 x 90mm | Termination Style | Crimp |
| Number of Contacts | 156 | Number of Positions | 156 |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | M | Series | DLM |
| Features | Actuating Camshaft | ||
Environmental
| Operating Temperature | +105°C | ||
Documents & Media
Similar Parts
030-2410-003
itt interconnect solutions
Contact PIN Crimp ST Cable Mount T/R CONN CONTACT MALE 24-26AWG GOLD MS Series Male Circular Connector Contact, Crimp Contact PIN Crimp ST Cable Mount CRIMP PIN, DLM, 24-26AWG ITT Cannon MS 系列 公 压接端接 圆形 连接器 触芯, 使用于ZIF 连接器, 26 → 24 AWG 线规格
030-2416-003
itt interconnect solutions
Contact PIN Crimp ST Cable Mount T/R CONN CONTACT BUMP 28-32AWG GOLD
030-2416-001
itt interconnect solutions
Contact PIN Crimp ST Cable Mount T/R DL CONT CRIMP 28-32 20AU CONTACT, PLUG & RCPT, 32-28AWG, CRIMP
030-2415-003
itt interconnect solutions
Contact PIN Crimp ST Cable Mount T/R DL CONT CRIMP 18-20 50AU CONTACT, PLUG, 20-18AWG, CRIMP
DLM1-156R
itt interconnect solutions
Conn Housing F 156 POS Crimp ST Cable Mount CONN HSG 156POS ZIF RCPT ZIF156 way rect metal socket body,5A

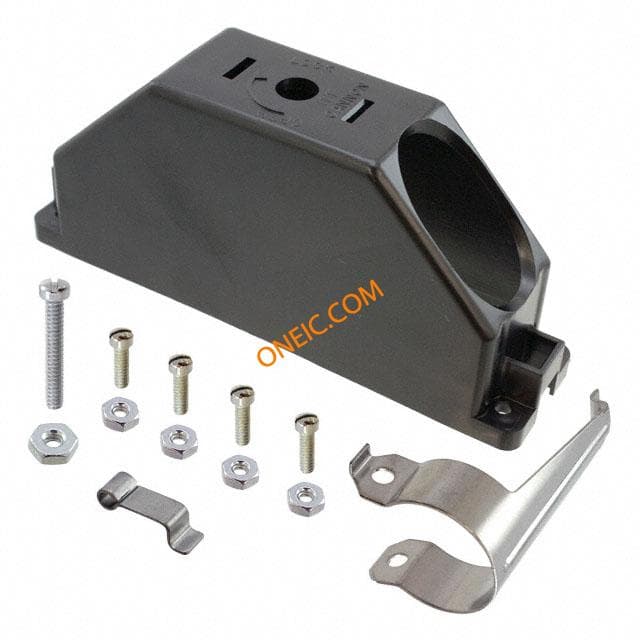

249-1950-000
