DL5-260P
| Manufacturer | |
| Description | Conn Housing PL 260 POS 2.54mm Crimp ST Panel Mount DL5 260C PLUG ZIF 260 way plastic plug body,5A CONNECTOR,ZIF ITT Cannon DL 系列 260 路 公 直 RJ45-Rangierfeld, 镀金触点, 5A |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Vendor undefined / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 1200 V ac | Current Rating (Max) | 5A |
Mechanical
| Color | Black | Depth | 77.36mm |
| Pitch | 2.54 mm | Width | 35mm |
| Height | 35 mm | Length | 108mm |
| Weight | 0.001 | Material | :Plastic |
| Packaging | Bulk | Wire Gauge | 18-42 AWG |
| Termination | Crimp | Weight (g): | 86.84700 |
| Mounting Type | Straight | Connector Type | Plug, Hermaphroditic Contacts |
| Contact Finish | Gold | Mounting Style | Panel |
| Number of Rows | 10 | Connector Style | Drawer |
| Contact Material | Beryllium Copper | Housing Material | Thermoplastic |
| Length - Overall | 108 mm | Size / Dimension | 108 x 35 x 77.36mm |
| Termination Style | Crimp | 1st Contact Gender | :- |
| Number of Contacts | 260 | Contact Termination | :Crimp |
| Number of Positions | 260 | Shell Size - Insert | :DL5 |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Series | DL |
| DELETED | Compliant | Features | Actuating Camshaft |
Environmental
| Operating Temperature | +105°C | ||
Documents & Media
Similar Parts
204-4501-000
itt interconnect solutions
Connector Accessories Actuating Handle Kit Thermoplastic CONN ZIF DL5 HANDLE HANDLE, DLS/DLMS
248-4500-000
itt interconnect solutions
Connector Accessories Plug Metal Shell Steel Nickel DL5-260PLUG SHELL MELAL
249-4501-000
itt interconnect solutions
Connector Accessories Metal Backshell Nickel Over Die Cast Aluminum Backshell 90°/180° Nickel Aluminum DL5 DLM5 METAL BACKSHELL BACKSHELL, DLM, 260WAY
975-0030
Deltron
Punches & Dies D-SUB 25 PIN FRONT

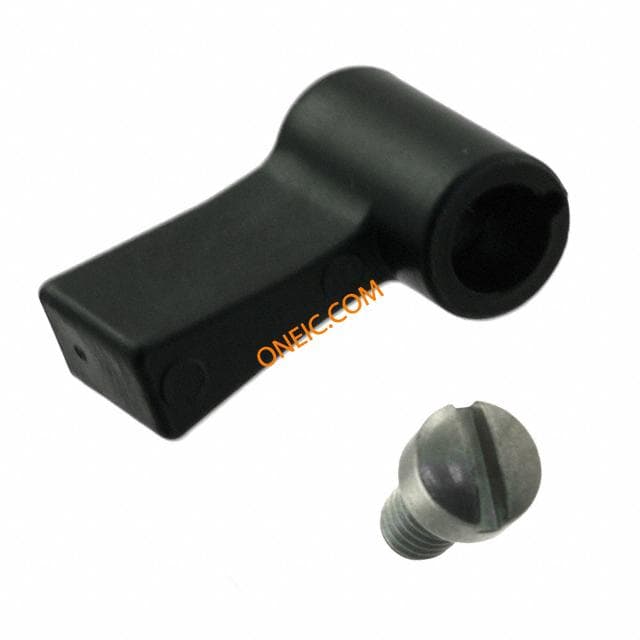

204-0016-000
itt interconnect solutions
Connector Accessories Actuating Handle Kit Thermoplastic CONN HANDLE DL1/2/3,DLM1/2/3 HANDLE, DL, ZIF, THERMOPLASTIC ITT Cannon DL 系列 调节器手柄, 使用于156 路多极连接器

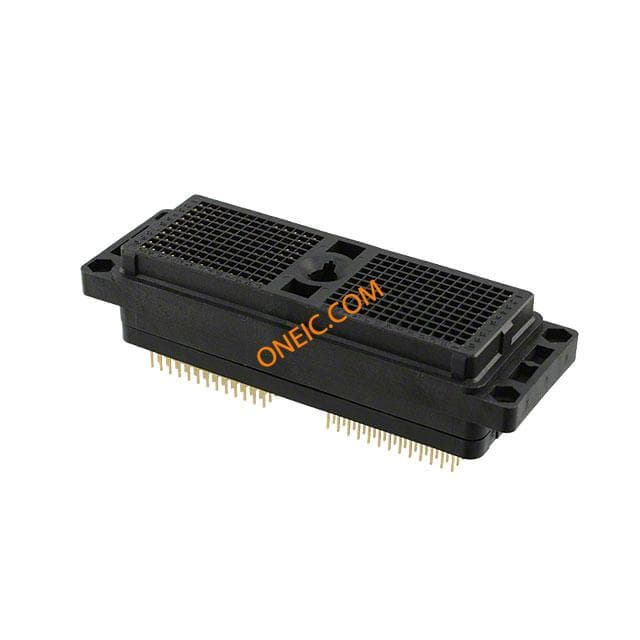

DL5-260RW6B
