DL3-60R
| Manufacturer | |
| Description | 086-0032-000 ZIF 60 way plastic socket body,5A ZIF CONNECTOR, RECEPTACLE, 60WAY, CRIMP CONN HSG 60POS ZIF RCPT |
| Category |
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 1200 V ac | Current Rating (Max) | 5A |
Mechanical
| Color | Black | Depth | 20.32mm |
| Pitch | :2.54mm | Width | 24.9mm |
| Length | 65.8mm | Weight | 0.023 |
| Packaging | Bulk | Termination | Crimp |
| Weight (g): | 23.20000 | Mounting Type | Straight |
| Connector Type | Housing for Non Gendered Contacts | Contact Finish | Gold |
| Number of Rows | :6 | Connector Style | Drawer |
| Connector Usage | Receptacle | Contact Material | Beryllium Copper |
| Housing Material | Thermoplastic | Size / Dimension | 65.8 x 24.9 x 20.32mm |
| 1st Contact Gender | :Socket | Number of Contacts | 60 |
| Contact Termination | :Crimp | Number of Positions | 60 |
| Shell Size - Insert | :DL3 | 1st Connector Mounting Type | :Cable |
Product Info
| Note | Contacts Not Provided | Gender | Female |
| Series | DL | Features | Actuating Camshaft Socket |
Environmental
| Operating Temperature | +105°C | ||
Documents & Media
Similar Parts
249-4518-000
itt interconnect solutions
Connector Accessories Metal Backshell Nickel Over Die Cast Aluminum DL3 DLM3 METAL BACKSHELL BACKSHELL, DLM, 60WAY

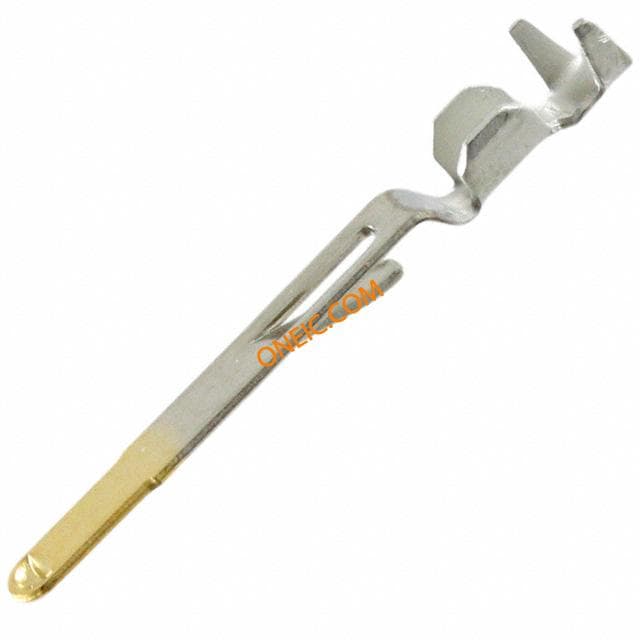

030-2410-001
itt interconnect solutions
Contact PIN Crimp ST Cable Mount T/R CONN CONTACT BUMP 24-26AWG GOLD MS Series Male Circular Connector Contact, Crimp CONTACT, PIN, 26-24 AWG, CRIMP CRIMPCONTACTS24/26AWG ITT Cannon DL 系列 公 压接端接 圆形 连接器 触芯, 使用于ZIF 连接器, 24 → 26 AWG 线规格
030-2416-001
itt interconnect solutions
Contact PIN Crimp ST Cable Mount T/R DL CONT CRIMP 28-32 20AU CONTACT, PLUG & RCPT, 32-28AWG, CRIMP

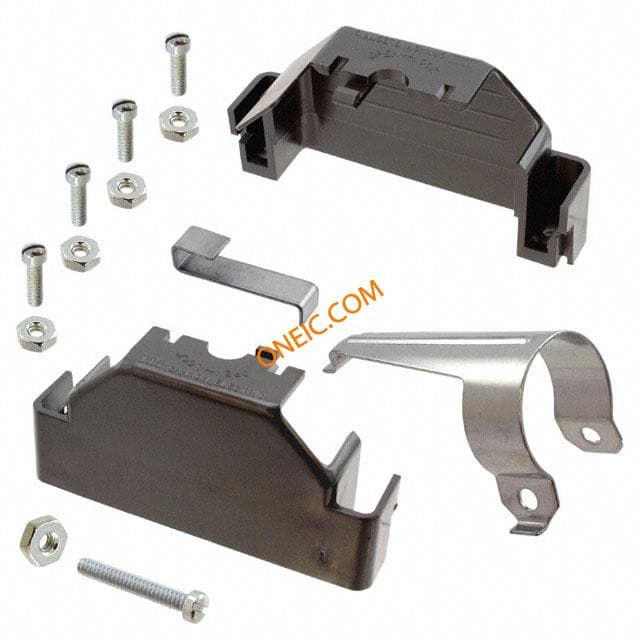

249-2237-001
itt interconnect solutions
SHELL ASSY JUNCT DL3-4-J/S Connector Accessories Plastic Junction Shell Kit Thermoplastic DL3-4-J/S JUNCTION SHELL KIT

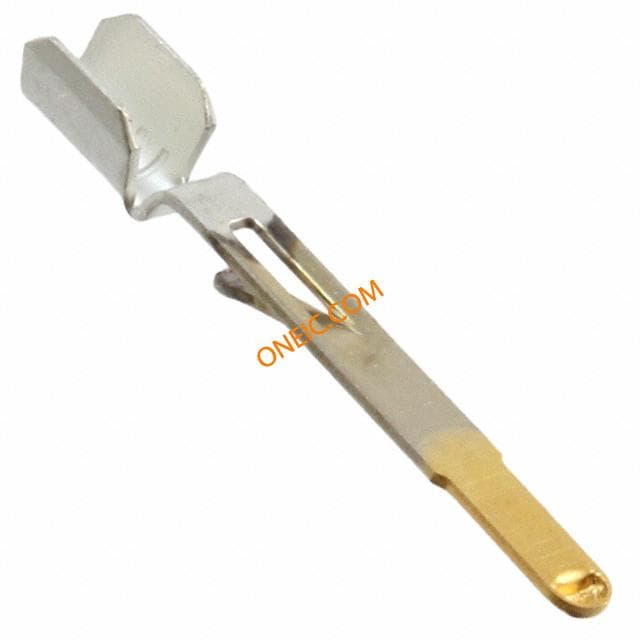

030-2415-001
itt interconnect solutions
Contact PIN Crimp ST Cable Mount T/R DL CONT CRIMP 24-26 20AU CONTACT, PLUG & RCPT, 26-24AWG, CRIMP
030-2491-001
itt interconnect solutions
Contact PIN Crimp ST Cable Mount T/R CONN CONTACT FLAT 20-22AWG GOLD MS Series Male Circular Connector Contact, Crimp CONTACT, SOCKET, FLAT, 22-20 AWG, CRIMP ITT Cannon DL 系列 公 压接端接 圆形 连接器 触芯, 使用于ZIF 连接器, 22 → 20 AWG 线规格
DL3-60P
itt interconnect solutions
Conn Housing PL 60 POS 2.54mm Crimp ST Panel Mount PLUG HOUSING 60POS ZIF
030-2493-001
itt interconnect solutions
Contact PIN Crimp ST Cable Mount T/R DL CONT CRIMP 18-20 50AU CONTACT, RECEPTACLE, 20-18 AWG, CRIMP
030-2409-001
itt interconnect solutions
Contact PIN Crimp ST Cable Mount T/R CONN CONTACT BUMP 20-22AWG GOLD MS Series Male Circular Connector Contact, Crimp 030-2409-001 connectoraccessory,crimpcontact,bumpandflat,forDL-series,for22-20awgwire ITT Cannon MS 系列 5A 公 压接端接 圆形 连接器 触芯, 使用于ZIF 连接器, 20 → 22 AWG 线规格

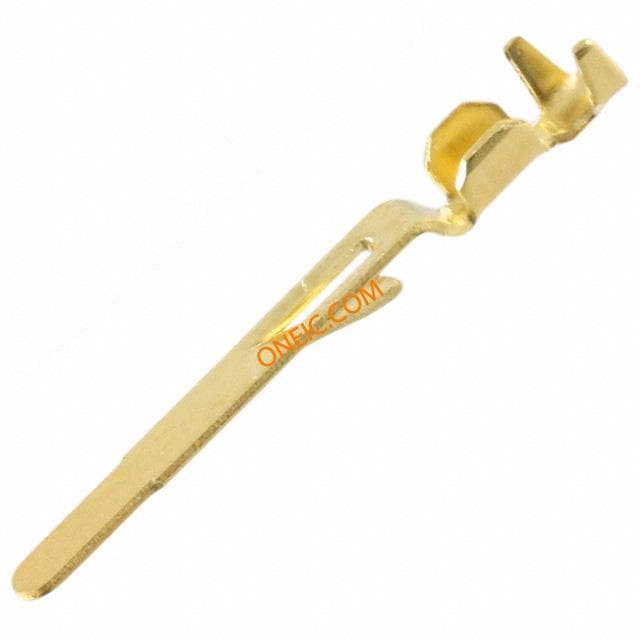

030-2492-001
itt interconnect solutions
Contact PIN Crimp ST Cable Mount T/R CONN CONTACT FLAT 24-26AWG GOLD MS Series Male Circular Connector Contact, Crimp 030-2492-001 CRIMP SOCKET, 24-26AWG ITT Cannon MS 系列 公 压接端接 圆形 连接器 触芯, 使用于ZIF 连接器, 26 → 24 AWG 线规格
110238-0400
itt interconnect solutions
Contact Crimp ST Cable Mount Reel CONN CONTACT BUMP 20-22AWG GOLD
DL2-3-C/C
ITT Cannon
CABLE CLAMP

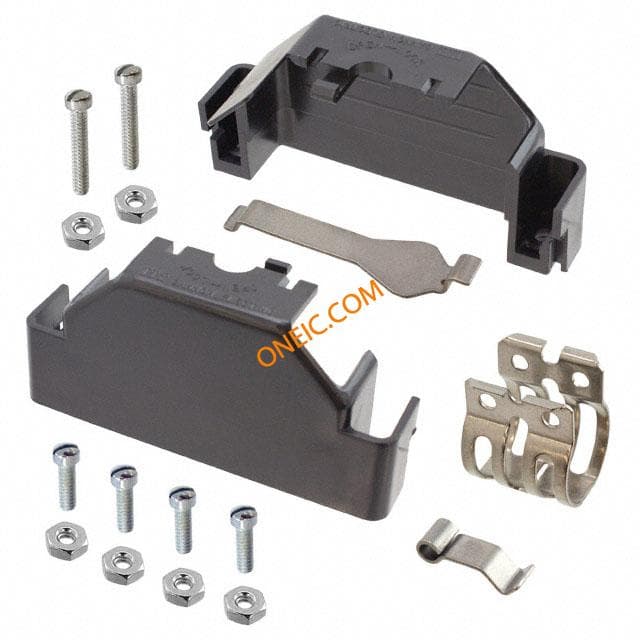

DL3-3-J/S
ITT Cannon, LLC
JUNCTION SHELL FOR DL3/ DLM3 JUNCTION SHELL KIT, THERMOPLASTIC
DL2-J/S
ITT Cannon
ZIF 96 way rectangular plastic backshell Connector Accessories Plastic Junction Shell Kit Straight Or Right Angle Cable Entry JUNCTION SHELL KIT, THERMOPLASTIC DL2-J/S JUNCTION SHELL KIT ITT Cannon DL 系列 96 路 热塑性 D-sub 连接器底壳 , 带应力消除

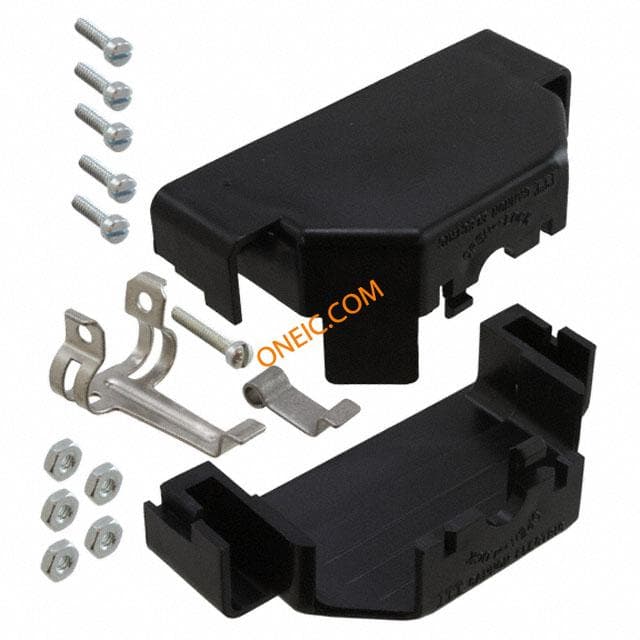

DL3-J/S
