192926-0500
| Manufacturer | |
| Description | Conn Ringlock Circular SKT 4 POS Crimp ST Cable Mount 4 Terminal 1 Port Conn Ringlock Circular SKT 4 POS ST Cable Mount 4 Terminal 1 Port CONN HSG PLUG CABLE 4POS SCKT Cable socket 4-pole Trident Ringlock Circular 4P Female 10, 192926-0500, ITT Corporation |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Voltage Rating | 250 | Number of Poles | 4 |
| Current Rating (Max) | 13 A | Voltage - Protection Level (VP) (2416) | IP 40/65 |
Mechanical
| Diameter | 21.6 | Packaging | Bulk |
| Cable Exit | No | Shell Size | 10 |
| Orientation | N (Normal) | Termination | Crimp |
| Weight (g): | 24.40000 | Contact Type | 4Signal |
| Mounting Type | Cable Mount | Connector Type | Plug for Female Contacts |
| Contact Finish | Nickel | Fastening Type | Bayonet Lock |
| Connector Style | straight | Locking Feature | Bayonet locking |
| Contact Material | Copper Alloy | Housing Material | Polyamide (PA/Nylon) |
| Length - Overall | 26.1 | Termination Style | Crimp Connection |
| 1st Contact Gender | SKT | Number of Contacts | 4 |
| Number of Positions | 4 | Shell Size - Insert | 10-4 |
| 1st Connector Gender | Female | Shell Material, Finish | Copper, Nickel Plated |
Product Info
| Note | Contacts Not Provided | Type | Ringlock Circular |
| Gender | PL | Series | Trident Ringlock Circular |
| Description | Cable socket | ||
Environmental
| Ingress Protection | IP65 - Dust Tight, Water Resistant | Operating Temperature | -55...+105 °C |
Documents & Media
Online Document
Online Document
Similar Parts

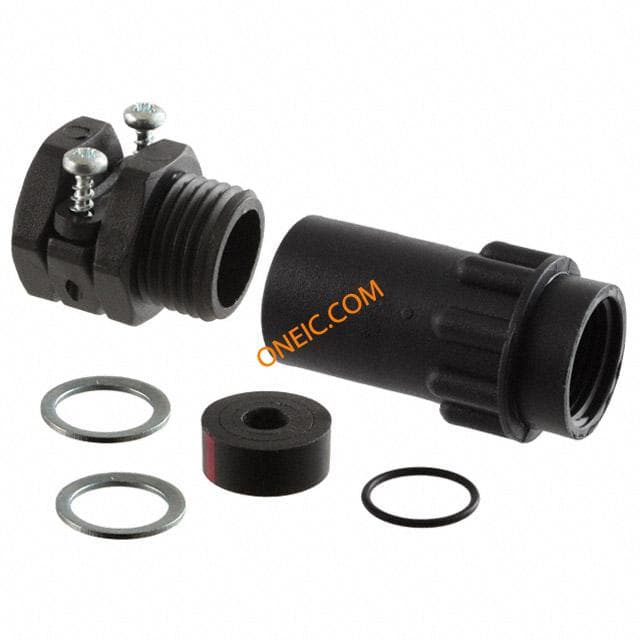

192990-1530
itt interconnect solutions
Connector Accessories Sealed Cable Clamps CONNECTORS CABLE CLAMP SEALED SHELL 10 CIRCULAR CABLE CLAMP, SIZE 10
$59.1600
Details
192926-0440
itt interconnect solutions
Conn Ringlock Circular PIN 4 POS ST Panel Mount 4 Terminal 1 Port CONN HSG RCPT WALL MNT 4POS PIN 4 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts CIRCULAR CONNECTOR RCPT, SIZE 10, 4POS, PANEL Panel-mount plug 4-pole Trident Ringlock Circular 4P Male 10, 192926-0440, ITT Corporation ITT Cannon 4路 面板安装 直向 连接器 插座 , 公触点
$15.6400
Details

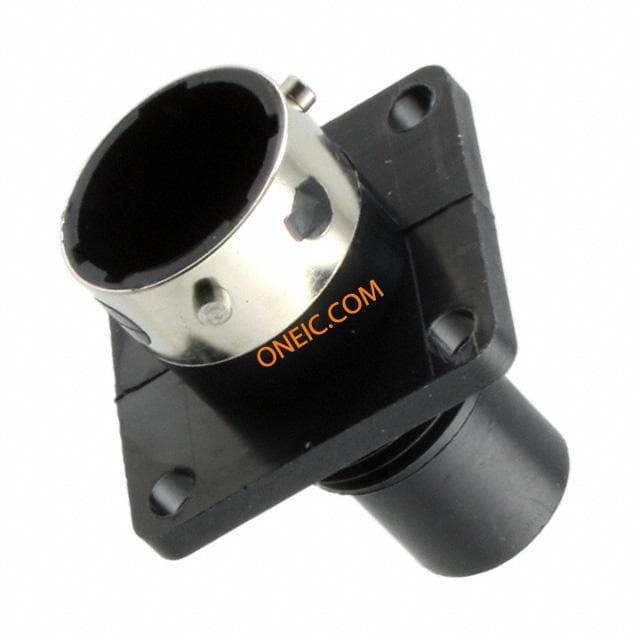

192990-1760
