192922-1270
| Manufacturer | |
| Description | Conn Ringlock Circular PIN 12 POS Crimp ST Cable Mount 12 Terminal 1 Port CONN HSG PLUG CABLE 12POS PIN Cable plug 12-pole Trident Ringlock Circular 12P Male 14, 192922-1270, ITT Corporation |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Voltage Rating | 250 | Number of Poles | 12 |
| Current Rating (Max) | 13 A | Voltage - Protection Level (VP) (2416) | IP 40/65 |
Mechanical
| Diameter | 28 | Packaging | Bulk |
| Cable Exit | No | Shell Size | 14 |
| Orientation | N (Normal) | Termination | Crimp |
| Weight (g): | 26.00000 | Contact Type | 12Signal |
| Mounting Type | Cable Mount | Connector Type | Plug for Male Contacts |
| Contact Finish | Nickel | Fastening Type | Bayonet Lock |
| Connector Style | straight | Locking Feature | Bayonet locking |
| Contact Material | Copper Alloy | Housing Material | Polyamide (PA/Nylon) |
| Length - Overall | 31.8 | Termination Style | Crimp Connection |
| 1st Contact Gender | PIN | Number of Contacts | 12 |
| Number of Positions | 12 | Shell Size - Insert | 14-12 |
| 1st Connector Gender | Male | Shell Material, Finish | Copper, Nickel Plated |
Product Info
| Note | Contacts Not Provided | Type | Ringlock Circular |
| Gender | PL | Series | Trident Ringlock Circular |
| Description | Cable plug | ||
Environmental
| Ingress Protection | IP65 - Dust Tight, Water Resistant | Operating Temperature | -55...+105 °C |
Documents & Media
PDF Document
Online Document
Online Document
PDF Document
Similar Parts
192990-1680
itt interconnect solutions
Conn Ringlock Circular SKT 12 POS Crimp ST Panel Mount 12 Terminal 1 Port CONN HSG RCPT WALL MNT 12POS SKT
$51.8840
Details
TR1412PMS1NB
itt interconnect solutions
Conn Ringlock Circular PIN 12 POS Crimp ST Cable Mount 12 Terminal 1 Port 12 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts CIRCULAR CONNECTOR, PLUG, 12 WAY, CABLE CONN HSG PLUG INLINE 12POS PIN ITT Cannon 系列 12路 电缆安装 直向 连接器 插头 , 公触点
$70.4045
Details

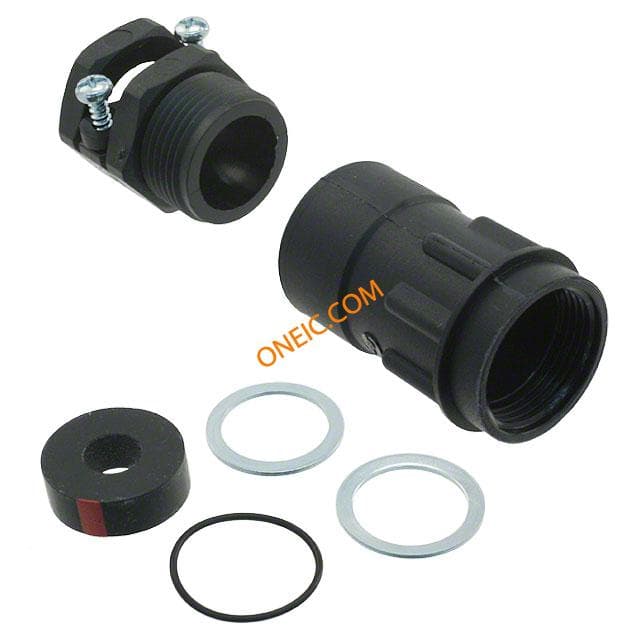

192990-1550
