MKJ3A7F6-7PN
| Manufacturer | |
| Description | Conn Circular PIN 7 POS Crimp ST Jam Nut 7 Terminal 1 Port Receptacle,jam nut,7w,pins,MKJ Series RECEPT, JAM NUT, SIZE 6, 7WAY, PIN CONN RCPT 7POS JAM NUT W/PINS |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Non Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
| Rad Hardened | No | ||
Electrical
| Voltage Rating | 500 V ac | Current Rating (Max) | 5A |
| Connector - Voltage Input | Miniature | ||
Mechanical
| Weight | 0.0042 | Packaging | Bulk |
| Cable Exit | No | Shell Size | 6 |
| Orientation | N (Normal) | Termination | Crimp |
| Weight (g): | 5.20000 | Contact Form | 7Signal |
| Contact Type | 7Signal | Mounting Type | Jam Nut |
| Shell Plating | Electroless Nickel | Connector Type | :Circular Industrial |
| Contact Finish | Gold over Nickel | Fastening Type | Bayonet Lock |
| Mounting Style | Jam Nut | Connector Usage | Bayonet |
| Insertion Angle | :6-7 | Material - Body | :Aluminium |
| Housing Material | Aluminium | 1st Contact Gender | PIN |
| Number of Contacts | 7 | Contact Termination | :Crimp |
| Number of Positions | 7 | Shell Size - Insert | :6 |
| Shell Material, Finish | Aluminum, Nickel Plated, Electroless | 1st Connector Mounting Type | :Panel |
| Shell Size - Insert (Convert To) | 6-7 | ||
Product Info
| Type | Circular | Gender | RCP |
| Series | MKJ | DELETED | Not Compliant |
Environmental
| Ingress Protection | Environment Resistant | Operating Temperature | +150°C |
Similar Parts

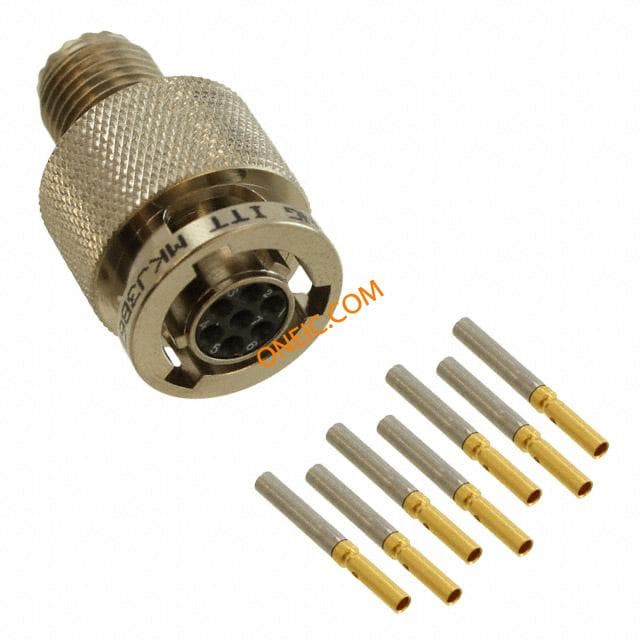

MKJ3B6F6-7SN
ITT Corporation
MKJ3B6F67SN MKJ3B6F6-7SN CONN PLUG 7POS STRGHT W/SKTS
$321.5904
Details

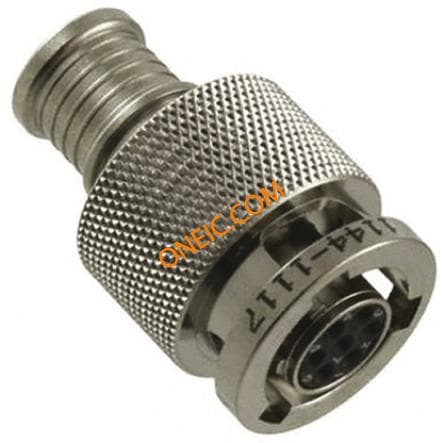

MKJ3A6F6-7SN
