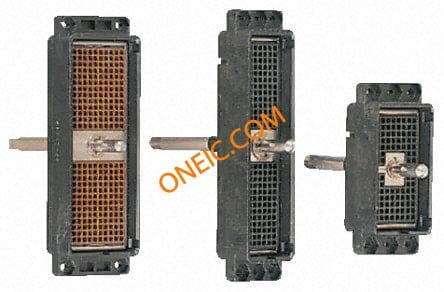

DL1-156RW-6B
| Manufacturer | |
| Description | Conn Rectangular SKT 156 POS 2.54mm Solder ST Thru-Hole ZIF CONNECTOR, RECEPTACLE, 156WAY, THD RCPT HOUSING 156POS ZIF SQ POST |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 105 Days | Subcategory | Connector Rectangular |
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85366930 | Material Flammability Rating | UL94 V-1 |
Electrical
| Current Rating (Max) | 5 A | ||
Mechanical
| Color | Black | Depth | 24.9 mm |
| Pitch | 2.54 mm | Height | 24.97 mm |
| Weight | 0 | Termination | Solder |
| Mounting Type | Through Hole | Connector Type | Receptacle, Hermaphroditic Contacts |
| Contact Finish | Gold Over Nickel | Mounting Style | Through Hole |
| Number of Rows | 6 | Connector Style | Drawer |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Length - Overall | 108 mm | Termination Style | Solder |
| 1st Contact Gender | SKT | Number of Contacts | 156 |
| Number of Positions | 156 | Shell Size - Insert | :DL1 |
| Contact Finish Thickness | 50µin (1.27µm) | 1st Connector Mounting Type | :PCB |
Product Info
| Type | Rectangular | Gender | RCP |
| Series | :DL | Features | Actuating Camshaft Socket |
| Industry Aliases | DL1-156RW6B | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -55C to 105C | ||
