DL1-156RW-4B
| Manufacturer | |
| Description | Conn Rectangular SKT 156 POS 2.54mm Solder ST Thru-Hole CONN 156POS ZIF WIRE WRAP RCPT |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 105 Days | Subcategory | Connector Rectangular |
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-1 | ||
Electrical
| Current Rating (Max) | 5 | ||
Mechanical
| Color | Black | Depth | 24.9 |
| Pitch | 0.100" (2.54mm) | Height | 24.97 |
| Packaging | Bulk | Termination | Solder |
| Mounting Type | Through Hole | Connector Type | Receptacle, Hermaphroditic Contacts |
| Contact Finish | Gold Over Nickel | Number of Rows | 6 |
| Connector Style | Drawer | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic | Length - Overall | 108 |
| 1st Contact Gender | SKT | Number of Contacts | 156 |
| Number of Positions | 156 | Contact Finish Thickness | 50µin (1.27µm) |
Product Info
| Type | Rectangular | Features | Actuating Camshaft Socket |
| Industry Aliases | DL1-156RW4B | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -55°C ~ 105°C | ||
Documents & Media
Online Document
Similar Parts
039-0243-000
itt interconnect solutions
Connector Accessories Protective Cover Receptacle Rubber DL1-156R COVER
$521.5001
Details

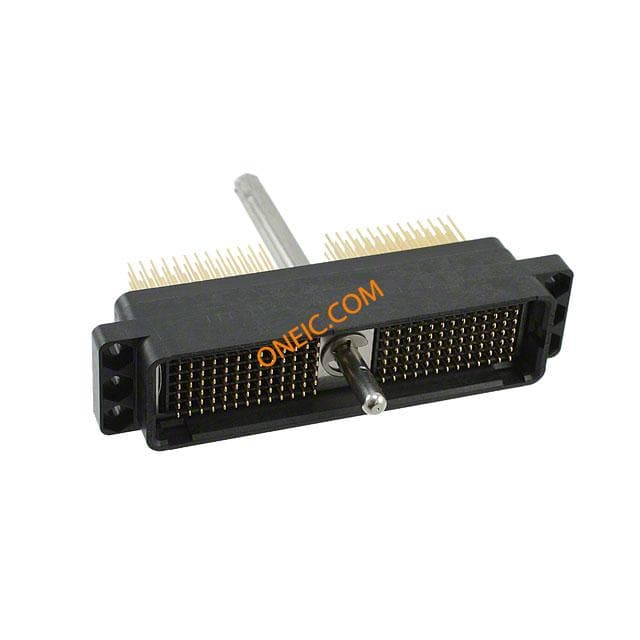

DL1-156PW-4A
itt interconnect solutions
Conn Rectangular PIN 156 POS 2.54mm Solder ST Thru-Hole CONN 156POS ZIF WIRE WRAP PLUG
$1685.3283
Details

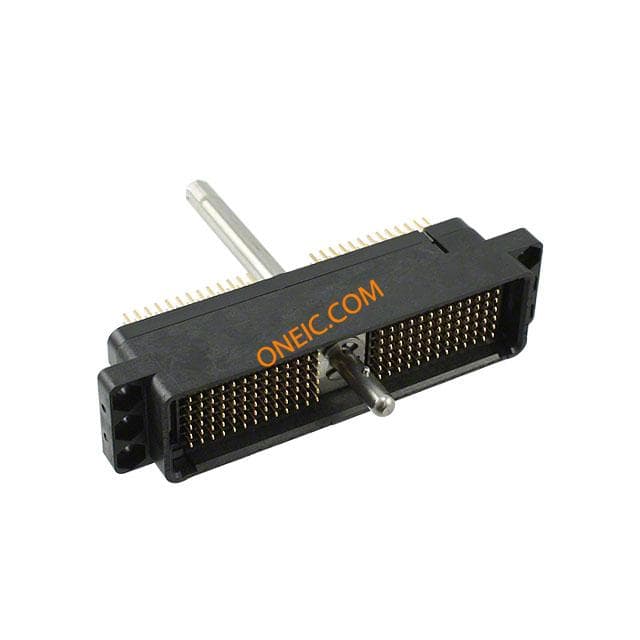

DL1-156PW-6A
