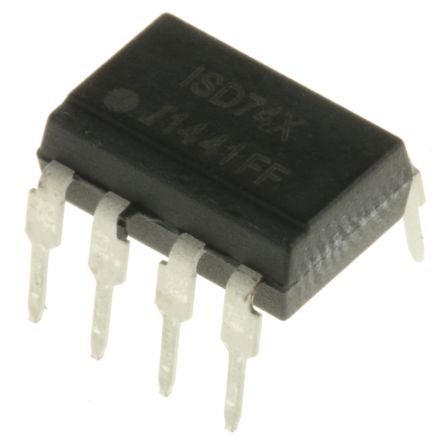

ISD74X
| Manufacturer | |
| Description | Opto-isolator,ISD74 5300Vac/50mA DIP8,BP Dual opto coupler,ISD74X DIP8 5300Vac Optocoupler; THT; Channels:2; Out: transistor; Uinsul:5.3kV; DIP8
sale Isocom 双 光耦 , 直流输入, 光电晶体管输出, 8针 PDIP 封装 |
| Category |
对参数有疑问？问 AI 助手
Electrical
| Output | Transistor | Output Type | transistor |
| Turn On Time | 2.6µs | Fall Time (Typ) | 2.2µs |
| Rise Time (Typ) | 2.6µs | Transistor Type | optocoupler |
| Delay Time - OFF | 2.2µs | Voltage - Supply | 50V |
| Number of Channels | 2 | Voltage - Breakdown | 5.3kV |
| Voltage - Isolation | 5.3 kV ac | Current Rating (Max) | 50 mA |
| Propagation Delay (Max) | 2.6µs | Input Logic Level - High | DC |
| Current - Input Bias (Max) | 50 mA | Current Transfer Ratio (Min) | 12.5%@16mA |
| Voltage - Forward (Vf) (Max) @ If | 1.65V | Propagation Delay tpLH / tpHL (Max) | 2.2µs |
Mechanical
| Weight | 1 g | Mounting Type | PCB Through Hole |
| Number of Pins | 8 | Package / Case | DIP8 |
| Package Cooled | PDIP | Package Quantity | 50 |
| Number of Contacts | 8 | ||
Product Info
| Spg | 50 | Number of Units | 1 |
