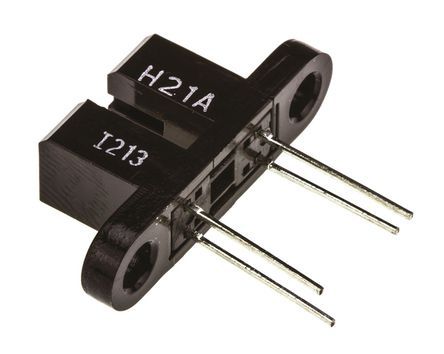

H21A3
| Manufacturer | |
| Description | Isocom H21A3 Screw Mount Slotted Optical Switch, Phototransistor Output OPTO-SWITCH,H21A3 Optocoupler; slotted with flag; Out: transistor; 30V Isocom H21A 系列 螺丝安装 槽形光电开关 , 光电晶体管 输出, 4针 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | RoHS Compliant Part | ||
Electrical
| Output | Phototransistor | Output Type | transistor |
| Fall Time (Typ) | 50µs | Rise Time (Typ) | 8µs |
| Transistor Type | optocoupler | Voltage - Supply | 30V |
| Number of Channels | 1 | Propagation Delay (Max) | 8µs |
| Propagation Delay tpLH / tpHL (Max) | 50µs | ||
Mechanical
| Width | 3mm | Height | 11.1mm |
| Length | 25.7mm | Weight | 1.13 g |
| Coupler Type | slotted with flag | Mounting Type | Screw Mount |
| Number of Pins | 4 | Package Quantity | 10 |
| Size / Dimension | 25.7 x 6.6 x 11.1mm | Number of Contacts | 4 |
Product Info
| Spg | 10 | Series | H21A |
| Number of Units | 1 | Other Specifications | 3mm |
Environmental
| Operating Temperature | +85°C | ||
