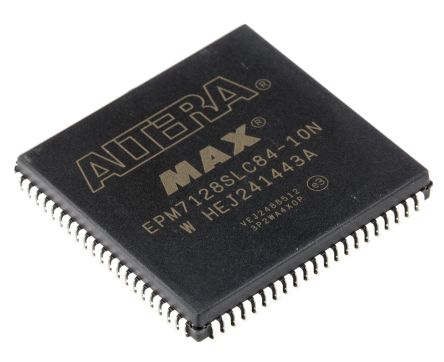

EPM7128SLC84-10N
| Manufacturer | |
| Description | CPLD MAX 7000S Family 2.5K Gates 128 Macro Cells 100MHz 5V 84-Pin PLCC IC CPLD 128MC 10NS 84PLCC EPM7128SLC84-10N, CPLD MAX 7000S EEPROM 128 Cells, 68 I/O, 8 Labs, ISP, 4.75 to 5.25V 84-Pin PLCC CPLD - Complex Programmable Logic Devices CPLD - MAX 7000 128 Macro 68 IOs , 最大 7000S系列 复杂可编程逻辑设备 CPLD, EEPROM存储器, 128宏单元, 68 I/O, 8逻辑块, ISP, 4.75 → 5.25 V, 84针 PLCC封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | MAX 7000 | Standard Package | 75 |
| Factory Pack Quantity | 15 | Standard Package Name | PLCC |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Delay Time | 6 ns | Memory Type | EEPROM |
| Number of I/O | 68 | Voltage - I/O | 68 |
| Voltage Rating | 4.75 V | FPGA Core Cells | 128 |
| Frequency - Max | 147.1 MHz | Output Function | 是 |
| Voltage - Supply | 3.3 V | Program Memory Type | EEPROM |
| Delay Time tpd(1) Max | 10.0ns | Voltage - Supply (Min) | 5.25 V |
| Propagation Delay (Max) | 6 ns | Voltage Supply - Internal | 4.75 V ~ 5.25 V |
| Propagation Delay tpLH / tpHL (Max) | 10 | Common Mode Transient Immunity (Min) | Commercial |
Mechanical
| Width | 29.31mm | Height | 3.81mm |
| Length | 29.31mm | Packaging | Tube |
| Lead Style | J-Lead | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | 84 |
| Package / Case | 84-LCC (J-Lead) | Package Cooled | PLCC |
| Writable Memory | Yes | Output Connector | Yes |
| Package Quantity | PLCC | Size / Dimension | 29.31 x 29.31 x 3.81mm |
| Number of Positions | 84 | Supplier Device Package | 84-PLCC (29.31x29.31) |
Product Info
| Series | MAX 7000 | Function | Y |
| Manufacturer | Intel / Altera | Programmable | 是 |
| Number of Gates | 2500 | Programmable Type | In System Programmable |
| RF Family/Standard | MAX 7000S | Number of LABs/CLBs | 8 |
| DigiKey Programmable | Yes | Number of Macrocells | 128 |
| In System Programming | Yes | Number of Inputs and Type | 68 |
| Number of Logic Elements/Blocks | 8 | ||
Environmental
| Operating Temperature | 0°C ~ 70°C | ||
