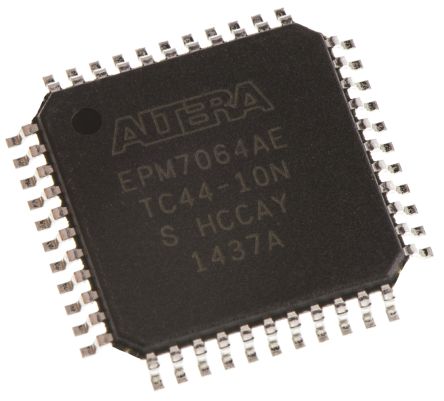

EPM7064AETC44-10N
| Manufacturer | |
| Description | CPLD MAX 7000A Family 1.25K Gates 64 Macro Cells 100MHz CMOS Technology 3.3V 44-Pin TQFP CPLD MAX 7000A Family 1.25K Gates 64 Macro Cells 100MHz 3.3V 44-Pin TQFP IC CPLD 64MC 10NS 44TQFP EPM7064AETC44-10N, CPLD MAX 7000A EEPROM 64 Cells, 36 I/O, 4 Labs, ISP, 3 to 3.6V 44-Pin TQFP CPLD - Complex Programmable Logic Devices CPLD - MAX 7000 64 Macro 36 IOs , 最大 7000A系列 复杂可编程逻辑设备 CPLD, EEPROM存储器, 64宏单元, 36 I/O, 4逻辑块, ISP, 3 → 3.6 V, 44针 TQFP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | MAX 7000A | Standard Package | Trays |
| Factory Pack Quantity | 160 | Standard Package Name | QFP |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Speed | 10 | Delay Time | 4.5 ns |
| Memory Type | EEPROM | Number of I/O | 36 |
| Voltage - I/O | 36 | Voltage Rating | 3.3 V |
| FPGA Core Cells | 64 | Frequency - Max | 100 MHz |
| Voltage - Supply | 3.3 V | Program Memory Type | EEPROM |
| Delay Time tpd(1) Max | 10.0ns | Voltage - Supply (Min) | 3.6 V |
| Propagation Delay (Max) | 4.5 ns | Voltage Supply - Internal | 3 V ~ 3.6 V |
| Propagation Delay tpLH / tpHL (Max) | 10 ns | Common Mode Transient Immunity (Min) | Commercial |
Mechanical
| Width | 10mm | Height | 0.95mm |
| Length | 10mm | Packaging | Tray |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | 44 |
| Package / Case | 44TQFP | Package Cooled | TQFP |
| Writable Memory | Yes | Package Quantity | TQFP |
| Size / Dimension | 10 x 10 x 0.95mm | Number of Positions | 44 |
| Supplier Device Package | 44-TQFP (10x10) | ||
Product Info
| Series | MAX 7000 | Function | Y |
| Manufacturer | Intel / Altera | Programmable | 是 |
| Number of Gates | 1250 | Programmable Type | In System Programmable |
| RF Family/Standard | MAX 7000A | Number of LABs/CLBs | 4 |
| DigiKey Programmable | Yes | Number of Macrocells | 1250 |
| In System Programming | Yes | Number of Inputs and Type | 36 |
| Number of Logic Elements/Blocks | 4 | ||
Environmental
| Operating Temperature | 0 to 70 °C | ||
