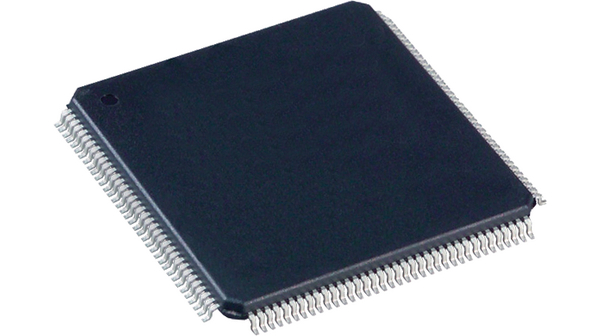

EP2C5T144C8N
| Manufacturer | |
| Description | FPGA Cyclone® II Family 4608 Cells 402.58MHz 90nm Technology 1.2V 144-Pin TQFP IC FPGA 89 I/O 144TQFP EP2C5T144C8N, FPGA Cyclone II 4608 Cells, 4608 Blocks, 1.15 to 1.25V 144-Pin TQFP FPGA - Field Programmable Gate Array FPGA - Cyclone II 288 LABs 89 IOs FPGA Cyclone� II Family 4608 Cells 402.58MHz 90nm Technology 1.2V 144-Pin TQFP CYCLONE II FPGA 5K, SMD, 2C5T144 CYCLONE II FPGA, SMD, 2C5T144, WAFFLE30 Integrated circuit: FPGA; 5k; 8ns; TQFP144; Series: Cyclone II Programmable logic IC TQFP-144, EP2C5T144C8N, Altera |
| Category |
Business
| Product | Cyclone II | Other Names | 544-1665 |
| Standard Package | Trays | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85423990 |
| Part Status | :2C5T144 | Rad Hardened | No |
Electrical
| Speed | 8 | RAM Size | 119808 |
| Frequency | 402.58 MHz | Interface | :HSTL-15, HSTL-18, LVCMOS, LVTTL, SSTL-18, SSTL-2 |
| Clock Rate | :PLL | Delay Time | 8ns |
| Logic Type | :2 | Memory Size | 119808 bit |
| Number of I/O | 89 | Voltage - Core | :1.15V |
| Voltage Rating | 1.2 V | Frequency - Max | 402.58 MHz |
| Voltage - Supply | 1.15 V ~ 1.25 V | Number of Elements | 13 (18 x 18) |
| Voltage - Supply (Min) | 1.25 V | Voltage - Supply, Digital | :3.465V |
| Voltage Supply - Internal | :1.15V to 1.25V | ||
Mechanical
| Width | 20mm | Height | 1.4mm |
| Length | 20mm | Weight | 0.11 |
| Fan Type | :Cyclone II | Packaging | Tray |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :144 |
| Package / Case | 144TQFP | Package Cooled | TQFP |
| Material Finish | :MSL 3 - 168 hours | Package Quantity | 5 |
| Size / Dimension | 20 x 20 x 1.4mm | Number of Positions | 144 |
| Supplier Device Package | 144-TQFP (20x20) | ||
Product Info
| Spg | 5 | Type | FPGA |
| Series | Cyclone II | Function | :FPGA |
| Technology | 90nm | Programmable | No |
| Total RAM Bits | 119808 | Number of Units | 1 |
| RF Family/Standard | Cyclone II | Number of LABs/CLBs | 288 |
| Number of Macrocells | :4608 | In System Programming | Yes |
| Number of Inputs and Type | 89 | Number of Logic Elements/Cells | 4608 |
| Number of Logic Elements/Blocks | 4608 | ||
Environmental
| Temperature Range | :Commercial | Operating Temperature | 0 to 85 °C |
| Operating Temperature - Junction | 85C | ||
