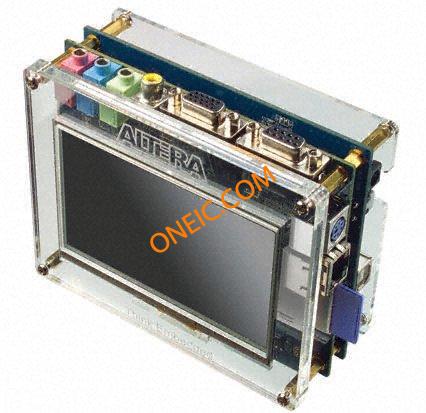

DK-N2EVAL-3C25N
| Manufacturer | |
| Description | Cyclone III Edition Nios II Embedded Evaluation Kit KIT DEV NIOS II CYCLONE III ED. DK-N2EVAL-3C25N, Programmable Logic Development Kit, Development Kit, FPGA Programmable Logic IC Development Tools FPGA Development Kit For EP3C25F324 CYCLONE III, EP3C25, FPGA, DEV KIT Development kit: Altera; EP3C25F324; Ethernet, PS/2,RS232,TV, VGA |
| Category |
Business
| Product | Development Kits | Tradename | Cyclone |
| Part # Aliases | P0306 T0306, | Standard Package | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85423190 | ||
Electrical
| Core Type | :FPGA | Interface | Ethernet, PS/2, RS-232, USB, VGA |
| Voltage - Supply | 9 V | Number of Elements | :EP3C |
Mechanical
| Weight | 0.4 | ||
Product Info
| Type | FPGA | Series | Cyclone III |
| Contents | Development Board, Module, and Software | Features | :On-board Oscillator, Embedded USB-Blaster Circuitry, Switching and Step-Down Regulator |
| Function | Nios II Embedded Evaluation Kit (NEEK) | Kit Type | Altera |
| Technology | FPGA | Kit Contents | Cyclone III EP3C25F324 FPGA, LCD Daughter Card, Starter Board for Cyclone III, Switches & Indicators |
| Manufacturer | :Cyclone III | Card Standard | Development Kit |
| Display Style | LCD 800x480 Touch Screen | Number of Units | 1 |
| Tool Type Feature | EP3C25F324 | Number of Circuits | EP3C25F324 |
| Chipset Manufacturer | :Altera | For Use With/Related Products | EP3C25 |
