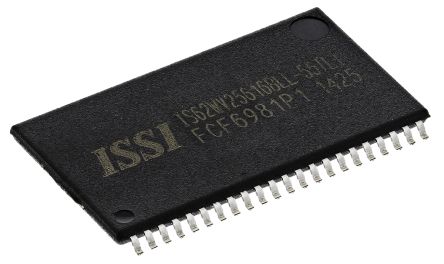

IS62WV25616BLL-55TLI
| Manufacturer | |
| Description | SRAM Chip Async Single 3.3V 4M-Bit 256K x 16 55ns 44-Pin TSOP-II IC SRAM 4MBIT 55NS 44TSOP IS62WV25616BLL-55TLI, SRAM Memory 4Mbit, 256K words x 16 bit,, 2.5 to 3.6V, 44-Pin, TSOP II SRAM 4Mb 256Kx16 55ns Async SRAM Memory; SRAM; 256kx16bit; 3.3V; 55ns; TSOP44 SRAM 256 k x 16 Bit TSOP-44 (Type II), IS62WV25616BLL-55TLI, ISSI ISSI , 4Mbit SRAM 内存, 256K 个字 x 16 位, 2.5 → 3.6 V, 44针 TSOP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | SRAM | Standard Package | 135 |
| Factory Pack Quantity | 135 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Speed | 55ns | Data Rate | SDR |
| Interface | Parallel | Clock Rate | 18 MHz |
| Access Time | 55ns | Memory Size | 4M (256K x 16) |
| Memory Type | SRAM - Asynchronous | Number of I/O | 16 Bit |
| Power - Input | 2.5...3.6 V | Voltage Rating | 3.3 V |
| Current - Output | 40 mA | Current - Supply | 15 uA |
| Voltage - Supply | 2.5 V ~ 3.6 V | Current Rating (Max) | 15 uA |
| Voltage - Supply (Min) | 3.6 V | Power - Average Forward | Yes |
| Idle Current, Typ @ 25degC | 是 | Number of Bits per Element | 16bit |
Mechanical
| Width | 10.29mm | Height | 1.05mm |
| Length | 18.52mm | Weight | 0.03 kg |
| Packaging | Tray | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | 44 |
| Package / Case | 44TSOP-II | Package Cooled | TSOP II |
| Package Quantity | 135 | Size / Dimension | 18.52 x 10.29 x 1.05mm |
| Number of Positions | 44 | Supplier Device Package | 44-TSOP II |
| Number of Cores/Bus Width | 18Bit | ||
Product Info
| Spg | 135 | Type | Asynchronous |
| Series | IS62WV25616BLL | Density | 4 Mb |
| Function | 异步 | Bit Count | 16Bit |
| Structure | 256K 个字 x 16 位 | Manufacturer | 256K words x 16 bit |
| Memory Format | RAM | Number of Ports | 1 |
| Number of Units | 1 | Number of Words | 256 K |
| Memory Organization | 256kx16bit | Number of Addresses | 18 Bit |
| Number of Characters | 256K | RAM Capacity/Installed | 4Mbit |
| Timing Adjustment Method | Asynchronous | ||
Environmental
| Operating Temperature | -40 to 85 °C | ||
