TLE4242G
| Manufacturer | |
| Description | LED DRVR 3Segment 5V/9V/12V/15V/18V/24V 8-Pin(7+Tab) TO-263 LED Lighting Drivers LED Drivers 42 V LEDDr 45V 500mA TO263-7 SMD IC LED DRIVER LINEAR D2PAK TLE4242G, LED Driver 3-Segments, 5, 9, 12, 15, 18, 24V, 8-Pin TO-263 LED DRIVER, ADJ CURRENT, TO-263-7 |
| Category |
Business
| MOQ | 1000 | Unit Pack | 1000 |
| Other Names | TLE4242GINCT | Part # Aliases | SP000299340 TLE4242GATMA1 TLE4242GNT TLE4242GXT |
| Product Category | LED Lighting Drivers | Standard Package | Tape & Reel |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85423190 |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Dimming | :PWM | Display Type | :LED |
| Voltage Rating | 4.5 V to 42 V | Current - Output | :500mA |
| Voltage - Supply | 4.5 to 42 V | Number of Outputs | 1 |
| Current - Output 1 | 0.5A | Voltage - Input (Min) | 44V |
| Constant Current Load - Max | Yes | Voltage - Continuous Operating (Max) (MCOV) | :42V |
Mechanical
| Width | 9.25mm | Height | 4.4mm |
| Length | 10mm | Weight | 0.00004 |
| Packaging | Reel | Case Color | :TO-263 |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :7 |
| Package / Case | 8TO-263 | Package Cooled | TO-263 |
| Material Finish | :- | Size / Dimension | 10 x 9.25 x 4.4mm |
| Number of Positions | 8 | Supplier Device Package | PG-TO263-7 |
Product Info
| Type | Linear | Topology | Linear (LDO), PWM |
| Base Unit | :4242 | Matchcode | TLE4242G |
| Standard Leadtime | 18 weeks | Number of Segments | 3 |
| Internal Connection | Yes | Application Specifics | :Automotive Lighting |
Environmental
| Mechanical Life | Obsolete | Temperature - Test | -40° |
| Operating Temperature | + 150 C | ||
Documents & Media
Similar Parts

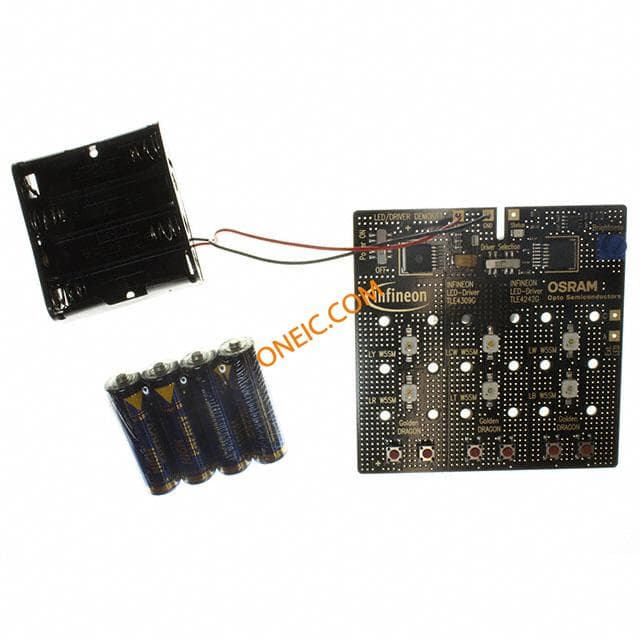

DEMOBOARD TLE4242G
