SAF-XC167CI-16F40F BB
| Manufacturer | |
| Description | MCU 16-Bit XC166 CISC/DSP/RISC 128KB Flash 2.5V/5V 144-Pin TQFP XC166 128K TQFP-144 85°C IC MCU 16BIT 128KB TQFP-144-19 16-bit Microcontrollers - MCU MICROCONTROLLER 16-BIT IC, MCU, 16BIT, 128KB, 144TQFP |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 1 | Unit Pack | 360 |
| Part # Aliases | SP000224689 XC167CI16F40FBBFXUMA1 | Product Category | 16-bit Microcontrollers - MCU |
| Standard Package | 360 | Factory Pack Quantity | 1000 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85423190 |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Speed | 40 MHz | RAM Size | 8 KB |
| Core Size | 16-Bit | Core Type | C166SV2 |
| Interface | ASC/I2C/SSC/CAN | Clock Rate | 40 MHz |
| EEPROM Size | 0Byte | Memory Size | 128KByte |
| Memory Type | FLASH | Display Type | 0 |
| Number of I/O | 103 | Clock Frequency | :40MHz |
| Data Converters | A/D 16x8/10b | Frequency - Max | 40MHz |
| Number of DAC's | 4 | Oscillator Type | Internal |
| Voltage - Supply | 2.5|5 V | Digital I/O Lines | 103pins |
| Resolution (Bits) | 10Bit | Number of Channels | 1 |
| Program Memory Size | 128 KB | Program Memory Type | Flash |
| Number of ADCs / DACs | 16channels | Voltage - Input (Min) | 5.5V |
| Number of Bits per Element | 10 bit | Voltage - Supply (Vcc/Vdd) | 2.35 V ~ 2.7 V |
Mechanical
| Weight | 0.11 | Packaging | TRAY |
| Mounting Style | SMD/SMT | Number of Pins | :144 |
| Package / Case | 144TQFP | Material Finish | :MSL 3 - 168 hours |
| Supplier Device Package | 144-TQFP (20x20) | Number of Cores/Bus Width | 16 Bit |
Product Info
| USB | No | Series | SAxXC167CI |
| Matchcode | SAF-XC167CI-16F40F BB | CAN Number | 2 |
| SPI Number | 2 | On-Chip RAM | 16-chx10-bit |
| Peripherals | PWM, WDT | Connectivity | CAN, EBI/EMI, I²C, SPI, UART/USART |
| Core Processor | C166SV2 | Number of Timers | 5 |
| Controller Series | :XC166 | Standard Leadtime | 14 weeks |
| RF Family/Standard | XC166 | ||
Environmental
| Temperature - Test | -40°C | Operating Temperature | -40 to 85 °C |
Documents & Media
PDF Document
PDF Document
Similar Parts
MCBX167-NET
armaco
Development Boards & Kits - Other Processors EVAL BOARD MCBX167 W/ CAN & ETHERNET BOARD EVAL INFINEON CAN/ETHRNT
Details
MCBXC167-BASIC
armaco
Development Boards & Kits - Other Processors EVAL BOARD FOR INFINEON XC16x Evaluation Board Includes Two Serial Ports And Support For OCDS Debugging BOARD EVAL BASIC INFINEON XC16X
Details

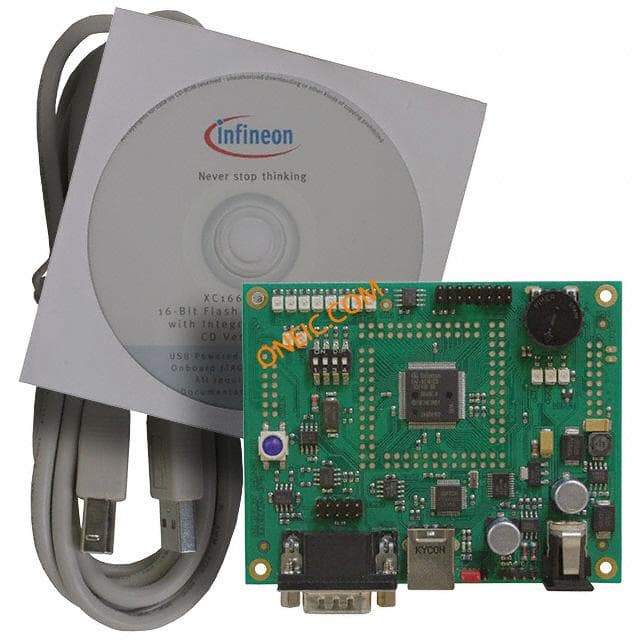

B158-H8963-X-X-7600
