CY62167DV30LL-55ZXI
| Manufacturer | |
| Description | SRAM Chip Async Single 3V 16M-Bit 1M x 16 55ns 48-Pin TSOP-I SRAM Chip Async Single 3V 16M-Bit 1M x 16 55ns 48-Pin TSOP-I Tray CY62167DV30LL-55ZXI, SRAM Memory 16Mbit, 1M words x 16 bit,, 2.2 to 3.6V, 48-Pin, TSOP I SRAM 16Mb 3V 55ns 1M x 16 LP SRAM IC, SRAM, 16MB, 1MX16, 3V, TSOP48 CYPCY62167DV30LL-55ZXI Memory; SRAM; 1Mx16bit; TSOP48 Cypress Semiconductor , 16Mbit SRAM 内存, 1M 个字 x 16 位, 2.2 → 3.6 V, 48针 TSOP封装 |
| Category |
Business
| Tradename | MoBL | Product Category | SRAM |
| Standard Package | Trays | Factory Pack Quantity | 96 |
| Standard Package Name | TSOP | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423245 |
| Rad Hardened | No | ||
Electrical
| Memory | :1M x 16bit | Frequency | :1MHz |
| Interface | Parallel | Clock Rate | 18 MHz |
| Access Time | 55ns | Memory Size | 16Mbit |
| Memory Type | :SRAM | Number of I/O | 16 Bit |
| Voltage - VCCB | :3V | Voltage Rating | 3 V |
| Clock Frequency | Not Required MHz | Current - Output | 30mA |
| Voltage - Supply | 3.6 V | Current Rating (Max) | 22 uA |
| Bidirectional Channels | Asynchronous | Voltage - Supply (Min) | 3.6 V |
| Power - Average Forward | Yes | Number of Bits per Element | 16bit |
| Common Mode Transient Immunity (Min) | Industrial | ||
Mechanical
| Width | 18.4mm | Height | 1.05mm |
| Length | 12mm | Weight | 0.002188 |
| Packaging | Tray | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :48 |
| Package / Case | 48TSOP-I | Package Cooled | TSOP I |
| Material Finish | :MSL 3 - 168 hours | Length - Overall | 12 |
| Package Quantity | TSOP-I | Size / Dimension | 12 x 18.4 x 1.05mm |
| Number of Positions | 48 | Shell Size - Insert | 1.05(Max) |
Product Info
| Spg | 6 | Type | Asynchronous |
| Series | CY62167DV30LL | Density | 16 Mb |
| Architecture | Not Required | Manufacturer | 1M words x 16 bit |
| Memory Format | 16 b | Bus Connection | 20 b |
| Number of Ports | 1 | Number of Units | 1 |
| Number of Words | 1 M | Utilized IC / Part | :CY62167DV30LL-55ZXI |
| Memory Organization | 1Mx16bit | Number of Addresses | 20 Bit |
| Printed Circuit Board | 48 | Timing Adjustment Method | Asynchronous |
Environmental
| Operating Temperature | -40 to 85 °C | ||
Documents & Media
Similar Parts
CY62157EV30LL-45ZXI
Infineon Technologies AG
IC SRAM 8MBIT 45NS 48TSOP
RE900-02
Roth Elektronik
RE900-02, Surface Mount (SMT) Board TSOP I Epoxy Glass Double-Sided 43.5 x 30.5 x 1.5mm FR4 ADAPTOR, SMD, 0.5MM, 28-48PIN SMDmulti-adaptorTSOPI,28-48pin0.50mm Board: universal; multiadapter; W:12mm; L:20mm Laboratory card FR4 Epoxide + chem. Ni/Au TSOP I 48 Adapter, RE900-02, Roth Elektronik
RE900-01
Roth Elektronik
RE900-01, Surface Mount (SMT) Board TSOP I Epoxy Glass Double-Sided 43.5 x 29 x 1.5mm FR4 ADAPTOR, SMD, 0.40MM, 28-60PIN SMDmulti-adaptorTSOPI,28-60pin0.40mm Board: universal; multiadapter; W:12mm; L:18mm Laboratory card FR4 Epoxide + chem. Ni/Au TSOP I 60 Adapter, RE900-01, Roth Elektronik
CR 88
EDSYN
SOLDER PASTE, 96.5/3.5, 221 DEG, 10G
DATAMAN 48PRO+
Advanced Micro Devices, Inc.
UNIVERSAL PROG, 48PRO, ISP, 48 PIN

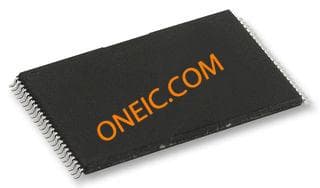

LY62W102516LL-55LLI
