61-957
| Manufacturer | |
| Description | Circuit Tracer; Open/Closed; for circuits 0-600V AC/DC Circuit Tracer 0...600 V AC/DC 32.768 kHz, 61-957, Ideal Industries |
| Category |
对参数有疑问？问 AI 助手
Compliance
| Safety Category | CAT III 600 V | ||
Electrical
| Indicator | On/Off, Line energized, Low battery | Sensor Type | Magnetic |
| Output Signal | 30 V Nominal | Power - Input | 3 x LR6/AA |
| Sensing Range | 15 Ft. Underground | Voltage Range | 0 to 600 VAC/VDC |
| Current - Output 1 | 200 mA p-pmax | Frequency - Operating | 32 kilohertz |
Mechanical
| Size | 285 x 355 x 83 mm | Weight | 2.1 |
Product Info

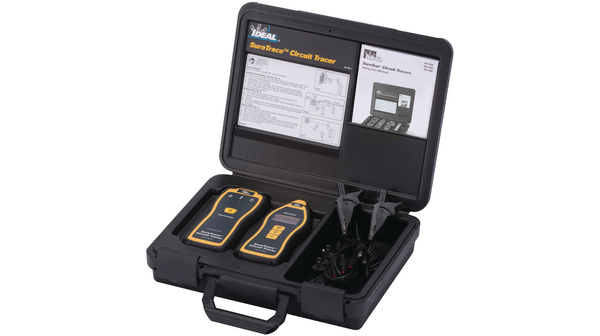

| Type | Circuit Tracer | Includes | Transmitter, Receiver, Test Leads and Case |
| Fuse Type | 1 A/1000 V, High-Energy, Fast-Acting (6 mm × 46 mm) — IDEAL # F-958 | Battery Chemistry | Transmitter: (4) AA batteries × 1.5 V, Receiver: (3) AA batteries × 1.5 V |
| For Use With/Related Products | Transmitter | ||
Environmental
| Battery Life | 40 hours open circuit testing / 25 hours short circuit tracing | ||
