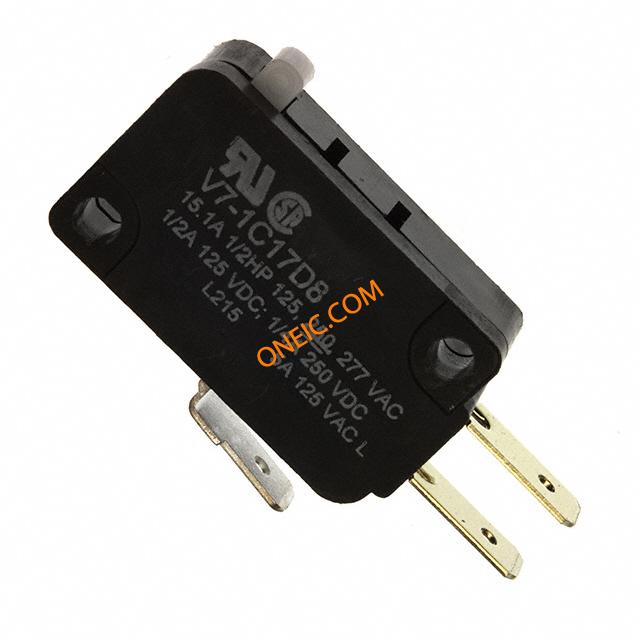

V7-1C17D8
| Manufacturer | |
| Description | Basic / Snap Action Switches 15.10 A @ 250 VAC Pin Plunger Actuator Switch Snap Action N.O./N.C. SPDT Pin Plunger Quick Connect 15.1A 277VAC 250VDC 1.47N Screw Mount MICRO SWITCH™ Electromechanical Switches, MICRO SWITCH™ Basic Switches, MICRO SWITCH™ Standard Precision Switches SW PIN PLNGR SPDT 15.1A 125V Switch; Miniature; Basic; SPDT; PIN PLUNGER Actuator; QUICK CONNECT TERMINATION Switch Snap Action N.O./N.C. SPDT Pin Plunger Quick Connect 15.1A 277VAC 250VDC 1.47N Screw Mount Potential Applications:AppliancesVending machinesTiming devicesOffice equipmentComputer/business equipmentTest instrumentsMedical/dental equipmentCommunications equipmentHVAC equipmentManually operated devicesValvesGaming equipmentPressure switches Switch,Miniature,Basic,SPDT,PINPLUNGERActuator,QUICKCONNECTTERMINATION V7 Series Miniature Basic Switch, Single Pole Double Throw Circuitry, 15.10 A at 250 Vac, Pin Plunger Actuator, 1,47 N [5.3 oz] Maximum Operating Force, Silver Contacts, Quick Connect Termination, CSA, UL |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | Microswitch | Product Category | Basic / Snap Action Switches |
| Standard Package | 100 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Standards | ULRecognized,CSACertified,VDEApproved | Material Flammability Rating | UL94V-0 |
Electrical
| Circuit | SPDT | Voltage Rating | 277 V |
| Number of Poles | 1 | Switch Function | On-Mom |
| Voltage - Rated AC | 277V VAC | Differential Travel | * |
| Current Rating (Max) | 15.1 A | Voltage - Input (Min) | 277 |
| Switch Function/Rating | N.O./N.C. | Voltage - DC Spark Over (Nom) | 250V VDC |
Mechanical
| Depth | 10.2 mm | Packaging | * |
| Pretravel | * | Overtravel | * |
| Body Finish | Miniature | Termination | QCTabs |
| Contact Form | SPDT | Actuator Type | Plunger, Pin |
| Mounting Type | Screw Mount | Release Force | * |
| Terminal Type | Quick Connect | Mounting Style | Screw |
| Shell Material | Thermoplastic | Operating Force | 1.47 N |
| Length - Overall | 39.4 mm | Termination Style | Quick Connect |
| Actuator Style/Size | Pin Plunger | Number of Positions | 2 |
| Mounting Hole Diameter | 0.114" | Switch Actuation Level | SPDT |
Product Info
| Type | Basic | Features | * |
| Electrical Life | * | Operating Position | * |
Environmental
| Mechanical Life | * | Ingress Protection | * |
| Temperature Rating | -40to+85°C | Operating Temperature | * |
| Operating Temperature - Junction | 85C | ||
