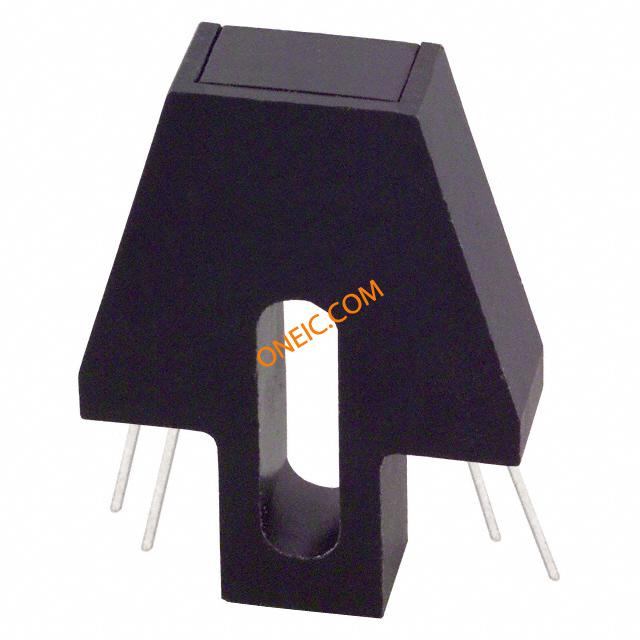

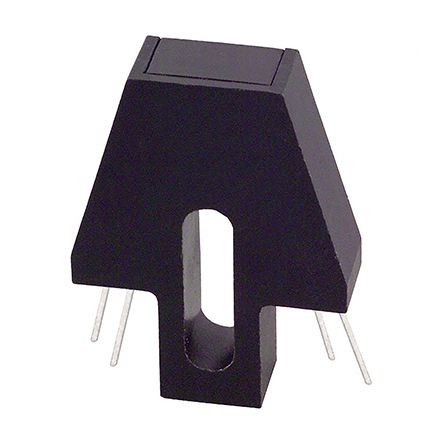

HOA1405-001
| Manufacturer | |
| Description | Optical Switches, Reflective, Phototransistor Output Reflctive / Plstc Pk Transistor Output Photointerrupter Reflective Phototransistor 4-Pin Side Looker Sensors, Infrared Sensors, Reflective SENSOR PHOTOTRANS REFL OPTICAL Sensor; Reflective; Polyester Housing; 1.6 V; 30 mA; 100 nA; -40 degC; degC Photointerrupter Reflective Phototransistor 4-Pin Side Looker Product Highlights:Phototransistor outputFocused for maximum responseAmbient light and dust protective filter Sensor,Reflective;PolyesterHousing;1.6V;30mA;100nA;-40degC;degC HOA1405 Series Reflective Sensor, Transistor Output, Plastic Package Honeywell 底盘安装 反射式传感器, 光电晶体管 输出, Side-looker封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 84 Days | Subcategory | Photointerrupter |
| Product Category | Optical Switches, Reflective, Phototransistor Output | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Output | Phototransistor | Response | 5,08 mm [0.20 in] |
| Fall Time | 15 us | Output Type | Phototransistor |
| Release Time | 0.20" | Power - Rated | 70 mW |
| Response Time | 15µs, 15µs | Rise Time (Typ) | 15 us |
| Current - Output | 10 µA | Sensing Distance | 5 mm |
| Voltage - Supply | 30 V | Number of Channels | 1 |
| Current - Switching | 50mA | LED Forward Current | 30 mA |
| LED Forward Voltage | 1.6 V | Voltage - Breakdown | 3 V |
| Current - Dark (Typ) | 100 nA | Vce Saturation (Max) | 0.4 V |
| Voltage - Input (Min) | 30 | Rise / Fall Time (Typ) | 15 µs |
| Voltage - Switching DC | 1.6V | Power Dissipation (Max) | 70mW |
| Voltage Regulation - Load | 3 | Switch Time (Ton, Toff) (Max) | 15μs |
| Current - Collector Cutoff (Max) | 0.20 mA | Current - Peak Pulse (10/1000us) | 30mA |
| Max Propagation Delay @ V, Max CL | 15000(Typ) | Current - On State (It (AV)) (Max) | 0.20mA |
| Voltage - Gate Trigger (Vgt) (Max) | 3 V | Propagation Delay tpLH / tpHL (Max) | 15µs |
| Current - Continuous Drain (Id) @ 25degC | 50 mA | Current - Average Rectified (Io) (per Diode) | 50mA |
Mechanical
| Width | 17.27mm | Height | 5.33mm |
| Length | 23.11mm | Material | PolyesterHousing |
| Packaging | Bulk | Lead Style | Through Hole |
| Termination | Lead | Mounting Type | Chassis Mount |
| Mounting Style | Through Hole | Package / Case | Side-Looking |
| Package Cooled | Side-Looking | Housing Material | Polyester |
| Package Quantity | Side Looker | Primary Material | Photoelectric |
| Size / Dimension | 23.11 x 17.27 x 5.33mm | Number of Contacts | 4 |
| Number of Positions | 4 | ||
Product Info
| Type | Reflective | Series | Reflective Sensor |
| Function | Proximity | Technology | Photoelectric |
| Manufacturer | HOA | Product Type | IR Switch |
| Sensing Method | Reflective | Measuring Range | 5.08mm |
Environmental
| Operating Temperature | + 85 C | ||
