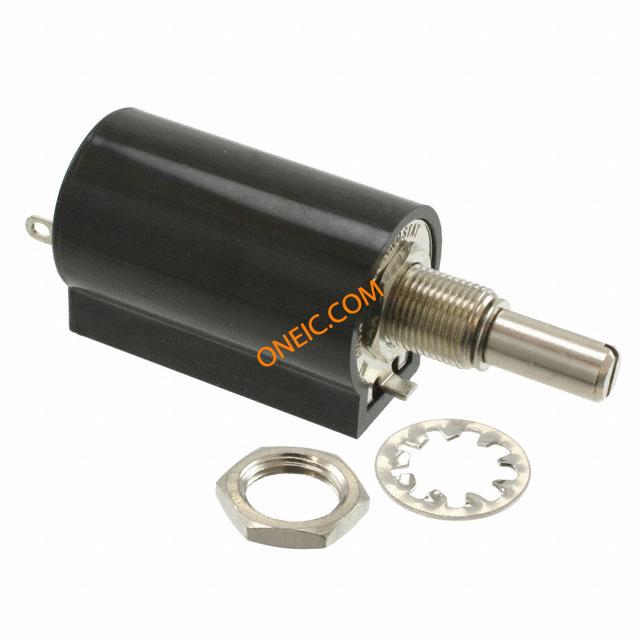

62JA5K
| Manufacturer | |
| Description | Potentiometers 5K Ohm 5% 2W 10 Turn 6.32mm Sldr Res Wirewound POT 5K Ohm 5% 2W 10(Elec)/10(Mech)Turn 6.32mm (22.23 X 25.4 X 68.26mm) Solder Lug Panel Mount 5K OHM POT 2W WW PLASTIC Potentiometer; Wirewound; 5 Kilohms; 10%; 3; 1 W; 0.3%; 0.88 in. Pot;Wirewound;Res5Kilohms;Panel;10Turns;Pwr-Rtg2W;Linear;Dia-Shaft0.25" |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Potentiometer | Lead Time | 42 Days |
| Other Names | Q1148815 | Subcategory | Resistor Trimmers, Potentiometer and Rheostat |
| Standard Pack | 100 | Product Category | Potentiometers |
| Standard Package | 100 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Linearity | ±0.3% | Tolerance | 10 % |
| Resistance | 5 kOhms | Element Type | Wirewound |
| Power (Watts) | 2W | Power - Rated | 2 W |
| Voltage Rating | 450 V | Resistance (Ohms) | 5k |
Mechanical
| Depth | 25.4 | Taper | Linear |
| Height | 68.26 | Rotation | 3600° |
| Packaging | Bulk | Size - Body | Round - 0.875" Dia x 1.563" L (22.22mm x 39.69mm) |
| Actuator Type | Slotted Shaft | Mounting Type | Panel Mount |
| Mounting Style | Panel | Shaft Diameter | 6.32 |
| Actuator Length | 0.937" (23.81mm) | Diameter - Shaft | 0.25" |
| Length - Overall | 22.23 | Material - Blade | Wirewound |
| Actuator Diameter | 0.249" (6.32mm) | Termination Style | Solder Lug |
| Resistive Material | Wirewound | Terminal Block Type | SolderLug |
| Length - Shaft and Bearing | 23.81 mm | ||
Product Info
| Type | Wirewound Precision, MultI-Turn | Series | 62 |
| Technology | Wirewound | Adjustment Type | Top Adjustment |
| Number of Turns | 10 | ||
Environmental
| Switching Cycles | 50000Cycles | Operating Temperature | - 55 C to + 85 C |
| Temperature Coefficient | 20 PPM / C | Operating Temperature - Junction | 120°C |
