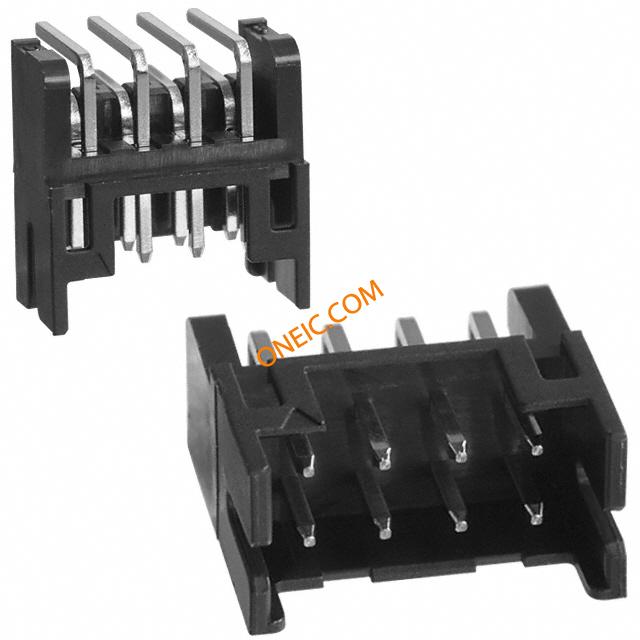

DF11-8DP-2DS(24)
| Manufacturer | |
| Description | CONN HEADER 8POS 2MM RT ANG TIN Hirose DF11 Series 2mm Pitch 8 Way 2 Row Right Angle PCB Header, Solder Termination, 2A Headers & Wire Housings 2MM R/A PCB HEADER 8P DR THRU-HOLE TIN Conn Shrouded Header HDR 8 POS 2mm Solder RA Thru-Hole Tube Pin header, angled Pitch2 mm Poles 2 x 4 DF11, DF11-8DP-2DS(24), Hirose Hirose DF11 系列 2mm节距 8路 (2排) 直角 PCB 针座, 焊接端接, 2A , 通孔 |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | 48 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 250 V | Number of Poles | 2 x 4 |
| Contact Resistance | 30 mohm | Current Rating (Max) | 2A |
Mechanical
| Color | Black | Depth | 10 mm |
| Pitch | 0.079" (2.00mm) | Height | 5 mm |
| Packaging | Tube | Body Color | 6 |
| Orientation | 直角 | Row Spacing | 0.079" (2.00mm) |
| Termination | Solder | Contact Type | Male Pin |
| Housing Color | Black | Mounting Type | Through Hole, Right Angle |
| Connector Type | Header, Shrouded | Contact Finish | Tin |
| Fastening Type | Detent Lock | Mounting Style | Through Hole |
| Number of Rows | 2 | Contact Material | Brass |
| Housing Material | Polyamide | Length - Overall | 10 mm |
| Termination Rows | 焊接 | Termination Style | Through Hole |
| Number of Contacts | 8 | Number of Positions | 8 |
| 1st Connector Gender | Male | Contact Length - Mating | 0.118" (3.00mm) |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | DF11 | DELETED | Compliant |
| Coverage | 覆盖 | Product Type | Headers |
| Amplifier Type | 10 | Connection Method | Wire-Board |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -30C to 85C | ||
