PCN10-20P-2.54DSA(72)
| Manufacturer | |
| Description | DIN 41612 Connectors DIN 41612 HDR 20 POS 2.54mm Solder ST Th CONN DIN HEADER 20POS DUAL STR Conn DIN 41612 HDR 20 POS 2.54mm Solder ST Thru-Hole |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | DIN 41612 Connectors | Standard Package | 45 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL94 V-0 |
Electrical
| Voltage Rating | 300 V | Contact Resistance | 20 mohm |
| Current Rating (Max) | 2 A | Voltage - Supply (Min) | 300VAC |
Mechanical
| Depth | 8.6 mm | Pitch | 2.54 mm |
| Height | 11.6 mm | Packaging | Tray |
| Termination | Solder | Housing Color | Gray |
| Mounting Type | Straight | Connector Type | Header, Male Pins |
| Contact Finish | Gold | Mounting Style | Through Hole |
| Number of Rows | 2 | Contact Material | Brass |
| Housing Material | Polybutylene Terephthalate (PBT) | Length - Overall | 43.3 mm |
| Termination Style | Through Hole | Number of Contacts | 20 |
| Number of Positions | 20 | Material - Insulation | Polybutylene Terephthalate (PBT) |
| Contact Finish Thickness | 8µin (0.20µm) | ||
Product Info
| Type | B | Style | B |
| Gender | HDR | Series | PCN10 |
| DELETED | Compliant | Product Type | Headers |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -55°C ~ 85°C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts

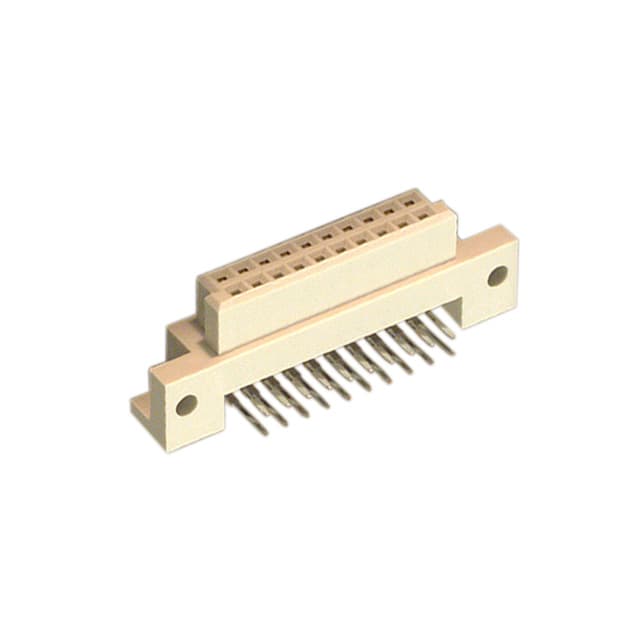

PCN13-20S-2.54DS(71)
Hirose Connector
DIN 41612 コネクタ DIN RCPT 20P DUAL R/A CONN DIN RCPT 20POS DUAL RT ANG DIN 41612 Connectors DIN RCPT 20P DUAL R/A
$9.5880
Details
PCN13-20S-2.54DSA(71)
Hirose Connector
DIN 41612 Connectors DIN RCPT 20P DUAL STR CONN DIN RCPT 20POS DUAL STR Conn DIN 41612 RCP 20 POS 2.54mm Solder ST Thru-Hole
$8.9760
Details

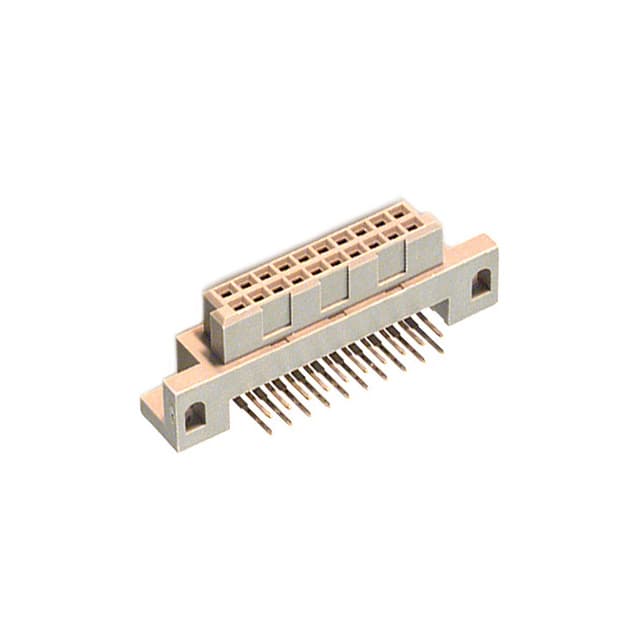

PCN10C-20S-2.54DS(72)
Hirose Connector
DIN 41612 Connectors DIN RCPT 20P DUAL R/A CONN DIN RCPT 20POS DUAL RT ANG
$35.8530
Details

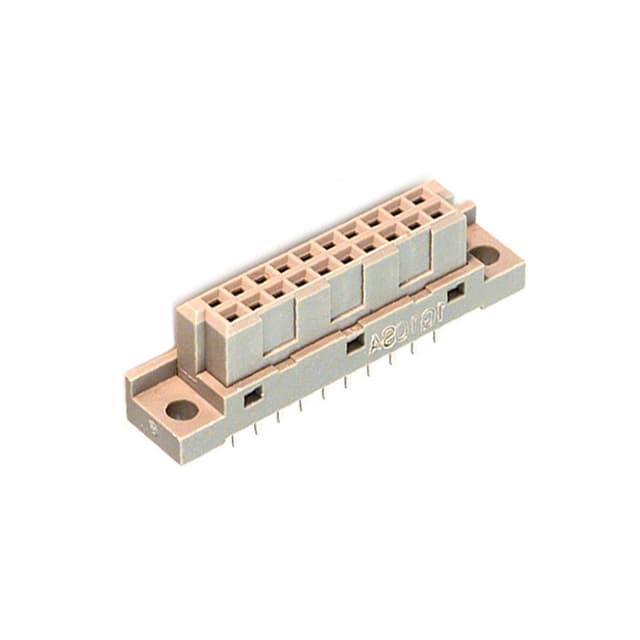

PCN10C-20S-2.54DSA(72)
