LX40-16P
| Manufacturer | |
| Description | I/O コネクタ PL 16 POS Solder ST Cable Mount 16Termin CONN PLUG 16POS .5MM SOLDER Low profile interface plug 16-way I/O Connectors PL 16 POS Solder ST Cable Mount 16Termin Conn Cellular Phone Connector PL 16 POS 0.5mm Solder ST Cable Mount 16 Terminal 1 Port Hirose LX 系列 黑色 电缆安装 公 电信号连接器, 焊接端接 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | I/O Connectors | Standard Package | 50 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Voltage Rating | 50 VAC | Contact Resistance | 70 mohm |
| Current Rating (Max) | 500 mA | Voltage - Supply (Min) | 50VAC |
Mechanical
| Color | Black | Depth | 27.6 mm |
| Pitch | 0.020" (0.50mm) | Height | 8 mm |
| Packaging | Bulk | Wire Type | Discrete |
| Cable Type | Discrete | Termination | Solder |
| Contact Form | Male Pin | Contact Type | Male Pin |
| Housing Color | Black | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug | Contact Finish | Gold |
| Mounting Style | Cable | Number of Rows | 1 |
| Contact Material | Copper Alloy | Housing Material | Stainless Steel |
| Length - Overall | 16.8 mm | Termination Rows | 焊接 |
| Cable Termination | Solder | Termination Style | Solder |
| Color - Connectors | Black | Number of Contacts | 16 |
| Number of Positions | 16 | ||
Product Info
| Gender | Male | Series | LX |
| DELETED | Compliant | Number of Ports | 1 |
| Output Configuration | Free Hanging (In-Line) | Number of Positions Loaded | 16 |
Environmental
| Operating Temperature | +70°C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts

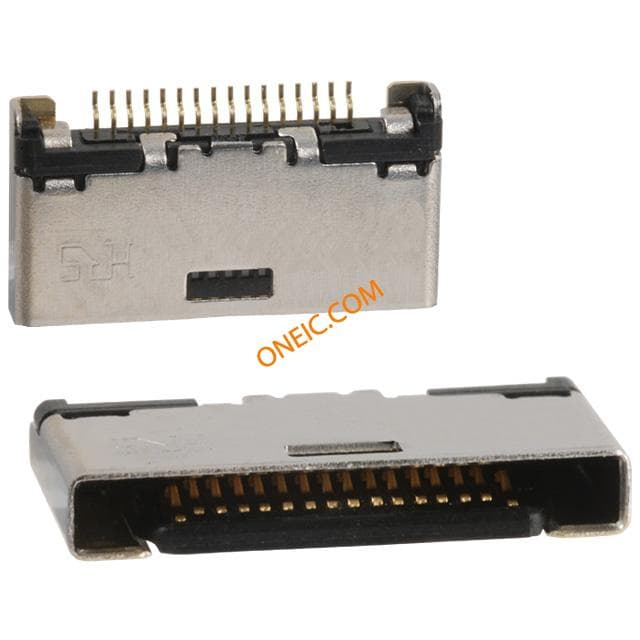

LX60-16S
Hirose Connector
I/O コネクタ RCP 16 POS 0.5mm Sol RA SMD 16Termina CONN RCPT 16POS .5MM RT ANG SMD Low profile interface receptacle 16-way I/O Connectors RCP 16 POS 0.5mm Sol RA SMD 16Termina RECEPTACLE16-WAY Hirose LX 系列 黑色 表面安装 母 电话连接器, 焊接端接
$8.9549
Details
.JPG&w=3840&q=75)

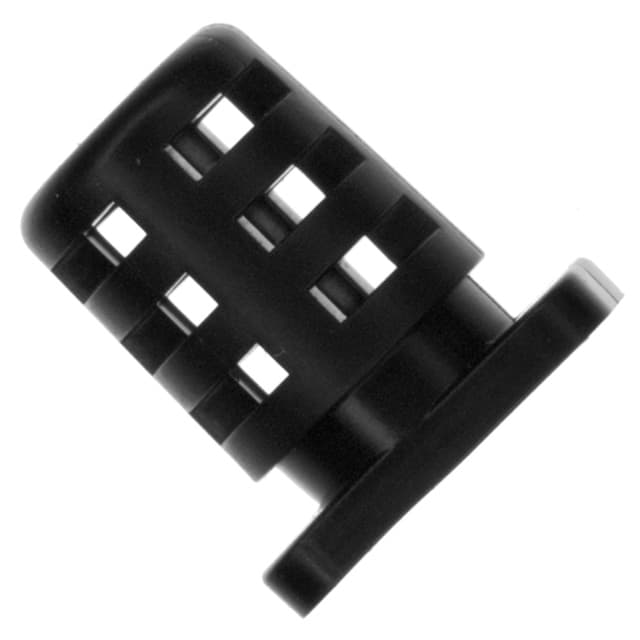

LX40-16BS(4.5)
