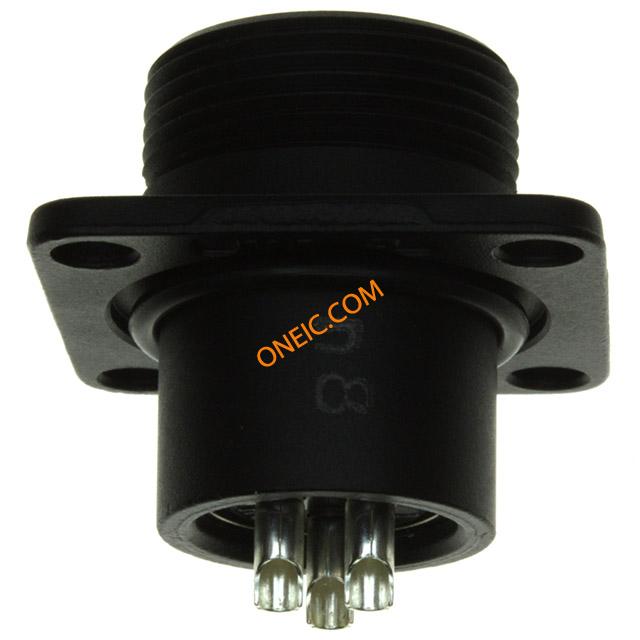

JR13WR-3P(71)
| Manufacturer | |
| Description | Standard Circular Connector RCPT IP67 3POS MALE CONN RCPT WATERPROOF 3POS MALE Receptacle IP67 waterproof solder 3 pin Hirose JR-W 系列 3路 面板安装 直向 连接器 插座 , 公触点, 螺丝锁接合 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 20 | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 500 V | Current Rating (Max) | 10 A |
Mechanical
| Outline | 13 | Packaging | Bulk |
| Shell Size | 13 | Orientation | Keyed |
| Shell Style | Receptacle | Termination | Solder Cup |
| Contact Type | 公插 | Mounting Type | Panel Mount, Bulkhead - Rear Side Nut |
| Shell Plating | Chromium | Connector Type | Receptacle, Male Pins |
| Contact Finish | Silver | Fastening Type | Threaded |
| Mounting Style | Panel | Shell Material | Metal |
| Connector Usage | Screw On | Contact Material | Copper Alloy |
| Housing Material | Aluminium Alloy, Brass, Zinc Alloy | Termination Rows | 焊接 |
| Termination Style | Solder | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 3 | Number of Positions | 3 |
| Shell Size - Insert | 13 | Shell Material, Finish | Aluminum, Brass and Zinc Alloy, Black Chrome Plated |
Product Info
| Gender | Female | Series | JR |
| Product Type | Connectors | ||
Environmental
| Seal Rating | IP67 | Ingress Protection | IP 67 |
| Operating Temperature | -25°C ~ 85°C | ||
