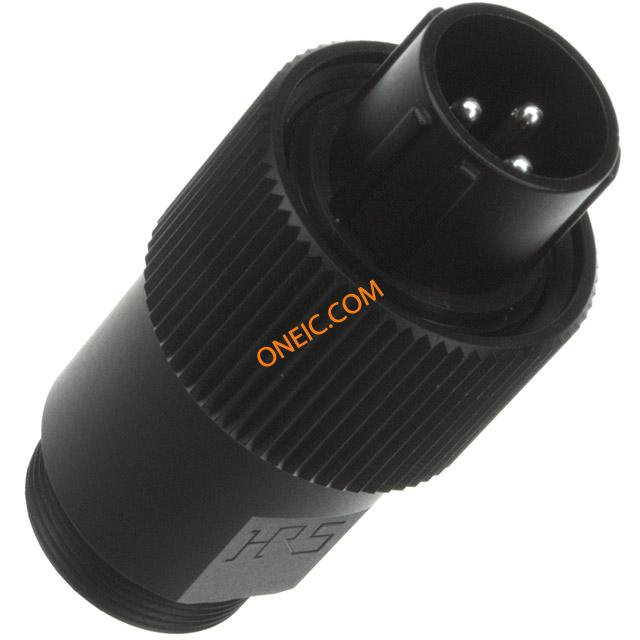

JR13WP-3P(71)

Manufacturer	Hirose Electric Co., Ltd.
Description	Standard Circular Connector Circular PIN 3 POS Solder ST Cbl Mnt CONN PLUG WATERPROOF 3POS MALE Plug IP67 waterproof solder 3 pin Conn High Performance Waterproof M 3 POS Solder ST Cable Mount 3 Terminal 1 Port PlugIP67waterproofsolder3pin Hirose JR-W 系列 3路电缆安装直向连接器插头 , 公触点, 螺丝锁接合
Category	Connector SolutionsCircular ConnectorsIndustrial Circular Connectors

对参数有疑问？问 AI 助手

Business

Product Category	Standard Circular Connector	Standard Package	20
Factory Pack Quantity	1

Compliance

RoHS

Compliant

Rad Hardened

Electrical

Voltage Rating

100VAC, 140VDC

Current Rating (Max)

10A

Mechanical

Outline	13	Diameter	21.8 mm
Packaging	Bulk	Cable Exit	No
Shell Size	13	Orientation	Keyed
Shell Style	Plug	Termination	Solder Cup
Contact Form	3Signal	Contact Type	公插
Mounting Type	Free Hanging (In-Line)	Shell Plating	Chromium
Connector Type	Plug, Male Pins	Contact Finish	Silver
Fastening Type	Threaded	Mounting Style	Free Hanging
Shell Material	Metal	Connector Usage	Screw On
Contact Material	Copper Alloy	Housing Material	Aluminium Alloy, Brass, Zinc Alloy
Length - Overall	44.7 mm	Termination Rows	焊接
Termination Style	Solder	1st Contact Gender	Male
Number of Contacts	3	Number of Positions	3
Shell Size - Insert	13	Shell Material, Finish	Aluminum, Brass and Zinc Alloy, Black Chrome Plated

Product Info

Gender	Male	Series	JR-W
DELETED	Compliant	Product Type	Connectors
RF Family/Standard	JR	Output Configuration	Free Hanging (In-Line)

Environmental

Seal Rating	IP67	Ingress Protection	IP67 - Dust Tight, Waterproof
Operating Temperature	-25°C ~ 85°C

Documents & Media

PDF Document

e11420015.pdf

Similar Parts

JR13WCCA-7(72)

Hirose Connector

Standard Circular Connector CABLE CLAMP 7MM CONN STRAIN RELIEF JR13 7MM Hirose 7mm 直径电缆应力消除 , 使用于RM-W 系列防水连接器

$40.2600

Details

JR13WCCA-8(72)

Hirose Connector

Standard Circular Connector CABLE CLAMP 8MM CONN STRAIN RELIEF JR13 8MM Cable Clamp,strain relief,8mm dia cable Hirose 8mm 直径电缆应力消除 , 使用于RM-W 系列防水连接器

$26.8600

Details

JR13WCCA-6(71)

Hirose Connector

Cable Mounting & Accessories STRN RELIEF JR13 6P CONN STRAIN RELIEF JR13 6MM

$23.1200

Details

JR13WCC-7(72)

Hirose Connector

Cable Mounting & Accessories CABLE CLAMP 7MM CONN CABLE CLAMP 7MM

$55.1684

Details

JR13WCCA-10(71)

Hirose Connector

Cable Mounting & Accessories STRN RELIEF JR13 10P CONN STRAIN RELIEF JR13 10MM

$24.3284

Details

JR13WCCA-5(71)

Hirose Connector

Cable Mounting & Accessories STRN RELIEF JR13 5P CONN STRAIN RELIEF JR13 5MM

$24.3284

Details

JR13WCC-8(71)

Hirose Connector

Cable Mounting & Accessories STRN RELIEF JR13 8MM CONN CABLE CLAMP 8MM

$489.2083

Details

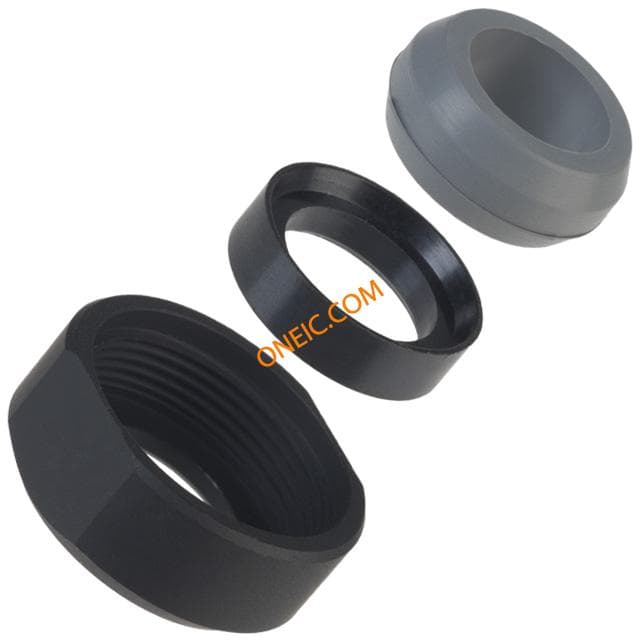

JR13WCCA-9(71)

Hirose Connector

Cable Mounting & Accessories STRAIN RELEF JR13 9P CONN STRAIN RELIEF JR13 9MM

$23.1200

Details

JR13WCCA-8(71)

Hirose Connector

Cable Mounting & Accessories STRAIN RELEF JR13 8P CONN STRAIN RELIEF JR13 8MM

$23.7796

Details

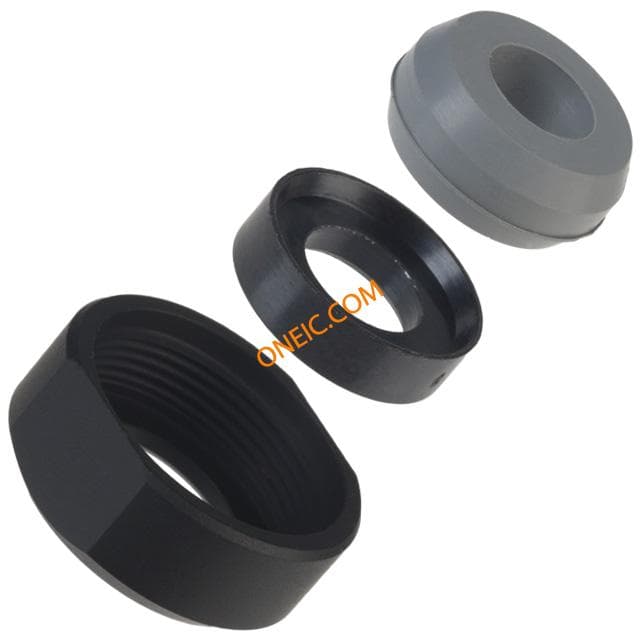

JR13WCCA-7(71)

Hirose Connector

Cable Mounting & Accessories STRAIN RELEF JR13 7P CONN STRAIN RELIEF JR13 7MM

$23.1200

Details

JR13WCC-5(71)

Hirose Connector

Standard Circular Connector STRN RELIEF JR13 5MM CONN CABLE CLAMP 5MM

$72.0800

Details

JR13WCC-8(72)

Hirose Connector

Standard Circular Connector CABLE CLAMP 8MM CONN CABLE CLAMP 8MM Connector Accessories Cable Clamp Shell Size 13 Hirose JR-W 系列 IP67 尺寸13 电缆夹, 带应力消除, 使用于RM-W 系列防水连接器

$63.0190

Details

JR13WCC-4(71)

Hirose Connector

Standard Circular Connector STRAIN RLF JR13 4MM CONN CABLE CLAMP 4MM

$49.1640

Details

JR13WCCA-6(72)

Hirose Connector

Standard Circular Connector CABLE CLAMP 6MM CONN STRAIN RELIEF JR13 6MM

$32.9072

Details

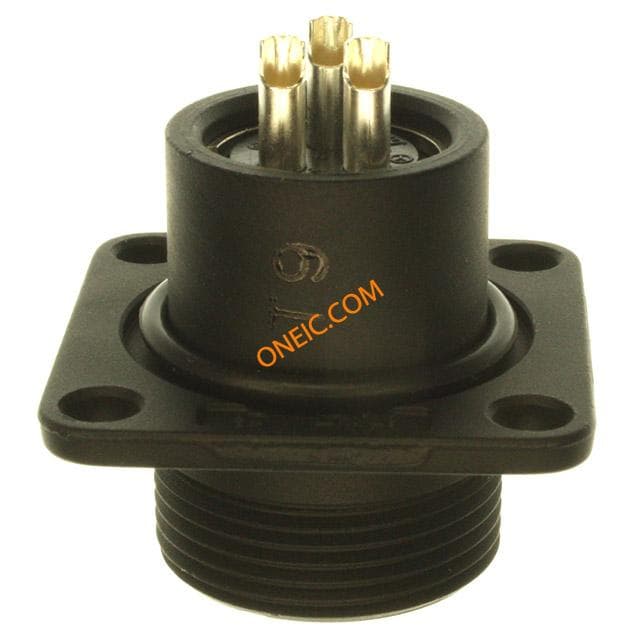

JR13WR-3S(71)
