HR30-7R-10PC(71)
| Manufacturer | |
| Description | Circular Push Pull Connectors 10P RECP SHELL SZ 7 MALE CRIMP CONN RECEPT 10POS MALE CRIMP Hirose HR30 Series 10 Way Straight Female Panel Mount Miniature Connector, 2A Conn Miniature Waterproof Plastic M 10 POS Crimp ST Panel Mount 10 Terminal 1 Port Hirose HR30系列 10路 直向 面板安装 插头, 2A |
| Category |
Business
| Product Category | Circular Push Pull Connectors | Standard Package | 50 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Compliant | Rad Hardened | No |
Electrical
| Voltage Rating | 30 V ac | Current Rating (Max) | 2A |
Mechanical
| Diameter | 15 mm | Packaging | Tray |
| Cable Exit | No | Shell Size | 7 |
| Orientation | Keyed | Shell Style | Receptacle |
| Termination | Crimp | Contact Form | 10Signal |
| Contact Type | Crimp | Mounting Type | Panel Mount, Bulkhead - Rear Side Nut |
| Connector Type | Receptacle for Male Contacts | Contact Finish | Gold |
| Fastening Type | Push-Pull | Mounting Style | Panel |
| Shell Material | Plastic | Contact Material | Brass, Phosphor Bronze |
| Length - Overall | 15.5 mm | Termination Rows | 压接 |
| Termination Style | Crimp | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 10 | Number of Positions | 10 |
| Shell Size - Insert | 7 | Shell Material, Finish | Polyphenylene Sulfide (PPS) |
Product Info
| Note | Contacts Not Provided | Gender | Female |
| Series | HR30 | DELETED | Compliant |
| Product Type | Connectors | RF Family/Standard | HR30 |
| Output Configuration | Panel Mount, Bulkhead - Rear Side Nut | ||
Environmental
| Ingress Protection | IP68 - Dust Tight, Waterproof | Operating Temperature | +85°C |
Documents & Media
Similar Parts
HR30-7R-C(71)
Hirose Connector
Circular Push Pull Connectors CAP FOR RECP SH SZ 7 CONN DUST CAP FOR 10&12POS RECPT Dust Cap for shell size 7 receptacle Connector Accessories Receptacle Circular Cap Shell Size 7 Sealing cap for 12-pole, HR30-7R-C(71), Hirose Hirose HR30 系列 插头 IP67 防尘盖, 尺寸7

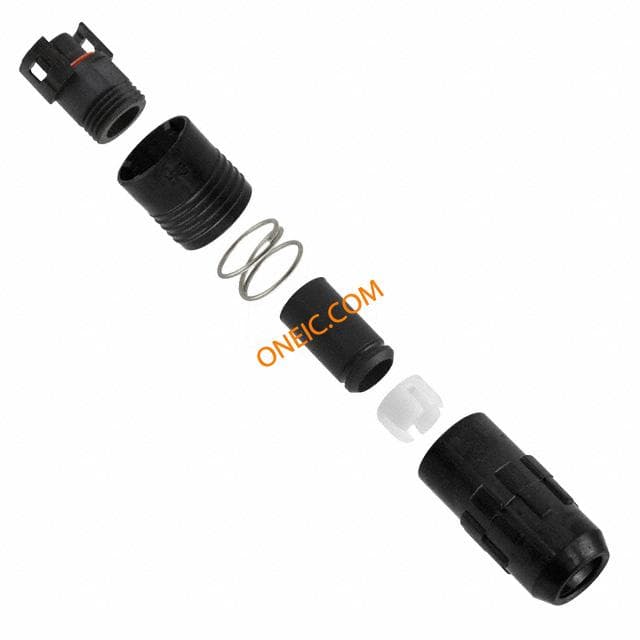

HR30-7P-10SC(71)
Hirose Connector
Circular Push Pull Connectors 10P PLUG SHELL SZ 7 FEMALE CRIMP CONN PLUG 10POS FEMALE CRIMP Hirose HR30 Series 10 Way Straight Male Cable Mount Miniature Connector, 2A Conn Miniature Waterproof Plastic F 10 POS Crimp ST Cable Mount 10 Terminal 1 Port Hirose HR30系列 10路 直向 电缆安装 插座, 2A

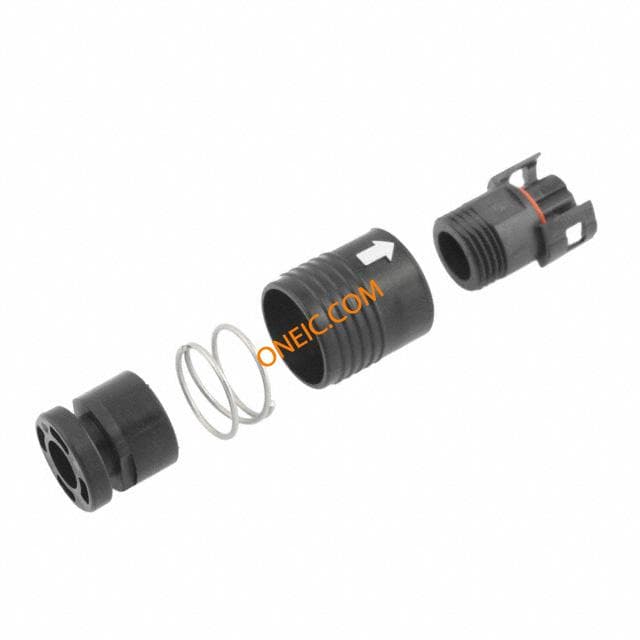

HR30-7PB-10SC
Hirose Connector
Circular Push Pull Connectors 10P PLG SHELL SZ 7 FEM W/OVERMOLD SPCR CONN PLUG 10POS FEMALE CRIMP

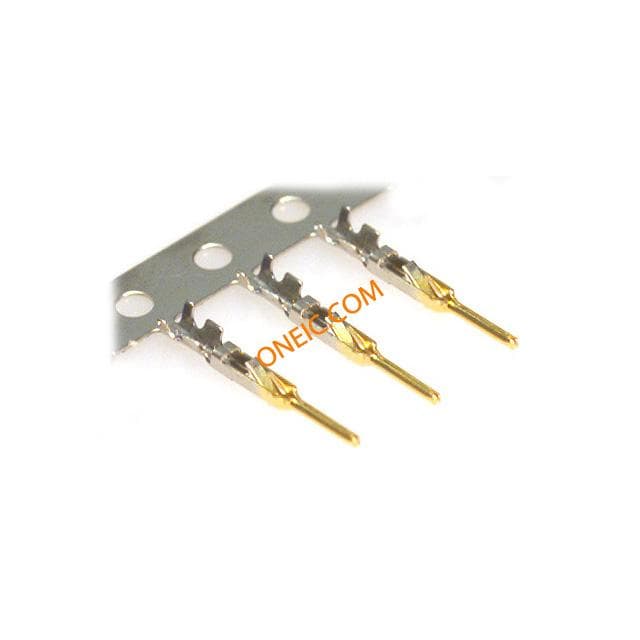

HR30-PC-211
Hirose Connector
Circular Push Pull Connectors MALE CONTACTS REEL CONTACT PIN CRIMP 26-30AWG GOLD Hirose HR30 系列 2A 公 压接端接 圆形 连接器 触芯, 使用于塑料连接器, 30 → 26 AWG 线规格

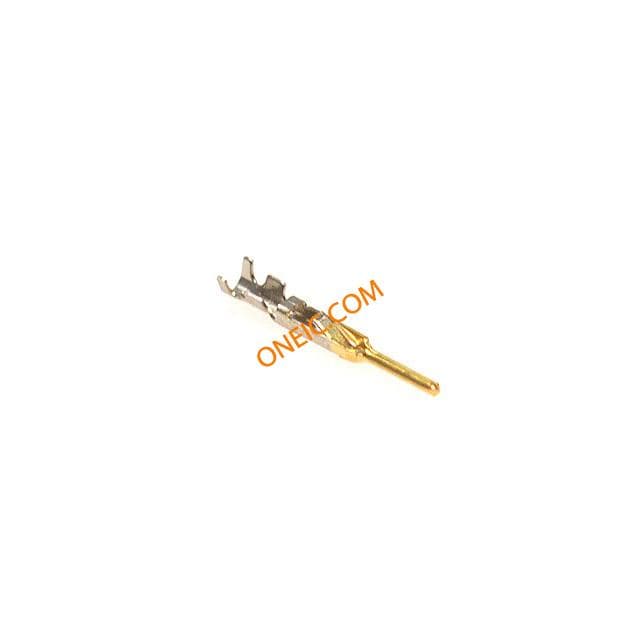

HR30-PC-111
Hirose Connector
Circular Push Pull Connectors MALE CONTACTS LOOSE CONTACT PIN CRIMP 26-30AWG GOLD HR30 Series 2A Male Circular Connector Contact, Crimp,Wire size 30 to 26AWG Hirose HR30 系列 2A 公 压接端接 圆形 连接器 触芯, 30 → 26 AWG 线规格
.jpg&w=3840&q=75)

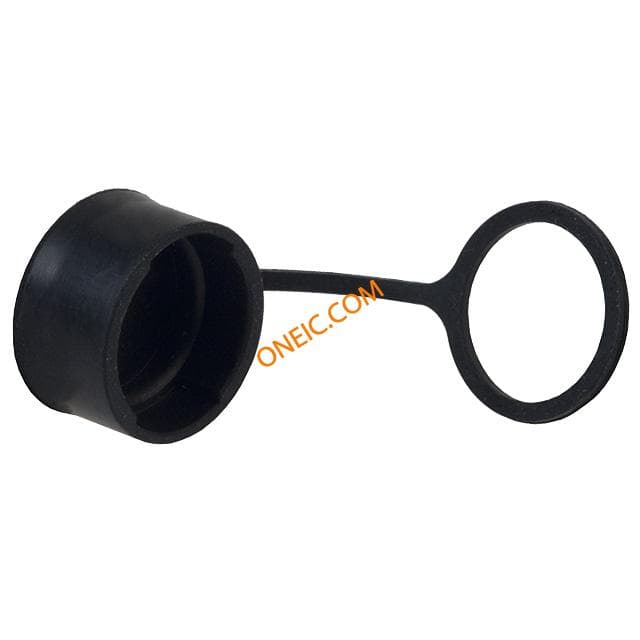

HR30-7R-C
