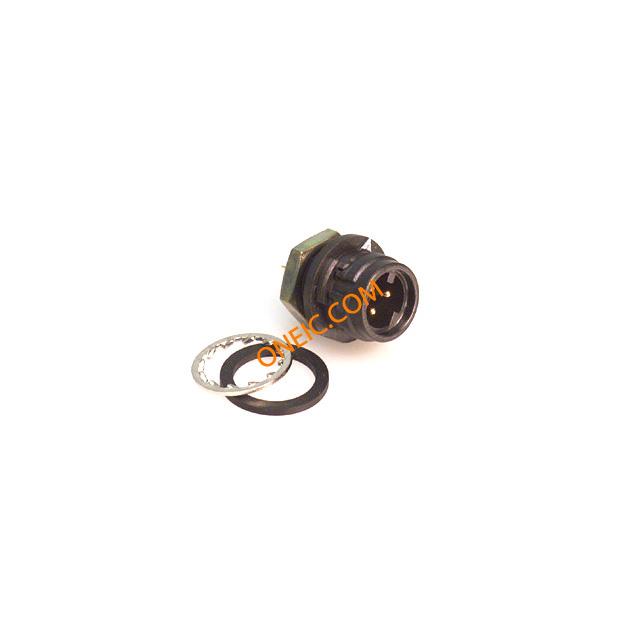

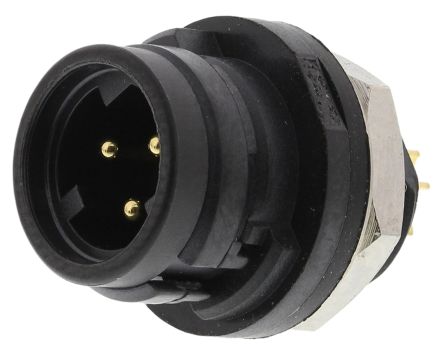

HR30-6R-3P(71)
| Manufacturer | |
| Description | Circular Push Pull Connectors 3P RECP SHELL SZ 6 MALE TERM SOLDER CONN RECEPT 3POS MALE SOLDER Hirose HR30 Series 3 Way Straight Female Panel Mount Miniature Connector, 5A Conn Miniature Waterproof Plastic M 3 POS Solder ST Panel Mount 3 Terminal 1 Port 3WMALERECEPTACLESOLDER Device connector 3-pin Poles=3, HR30-6R-3P(71), Hirose Hirose HR30系列 3路 直向 面板安装 插头, 5A |
| Category |
Business
| Product Category | Circular Push Pull Connectors | Standard Package | 50 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Compliant | Rad Hardened | No |
Electrical
| Voltage Rating | 100VAC, 140VDC | Number of Poles | 3 |
| Current Rating (Max) | 5A | Current Rating - Appliance Inlet | 5 |
Mechanical
| Diameter | 12 mm | Packaging | Tray |
| Cable Exit | No | Shell Size | 6 |
| Orientation | Keyed | Shell Style | Receptacle |
| Termination | Solder Cup | Contact Form | 3Signal |
| Mounting Type | Panel Mount, Bulkhead - Rear Side Nut | Connector Type | Receptacle, Male Pins |
| Contact Finish | Gold | Fastening Type | Push-Pull |
| Mounting Style | Panel | Shell Material | Plastic |
| Locking Feature | Push-Pull | Contact Material | Brass, Phosphor Bronze |
| Housing Material | Glass fibre (GF) | Length - Overall | 16 mm |
| Termination Rows | 焊接 | Termination Style | Solder |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 3 |
| Number of Positions | 3 | Shell Size - Insert | 6 |
| 1st Connector Gender | Male | Shell Material, Finish | Polyphenylene Sulfide (PPS) |
Product Info
| Design | Panel-mount male receptacle | Gender | Female |
| Series | HR30 | DELETED | Compliant |
| Product Type | Connectors | RF Family/Standard | HR30 |
| Output Configuration | Panel Mount, Bulkhead - Rear Side Nut | ||
Environmental
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | -25°C ~ 85°C |
Documents & Media
Similar Parts
.jpg&w=3840&q=75)

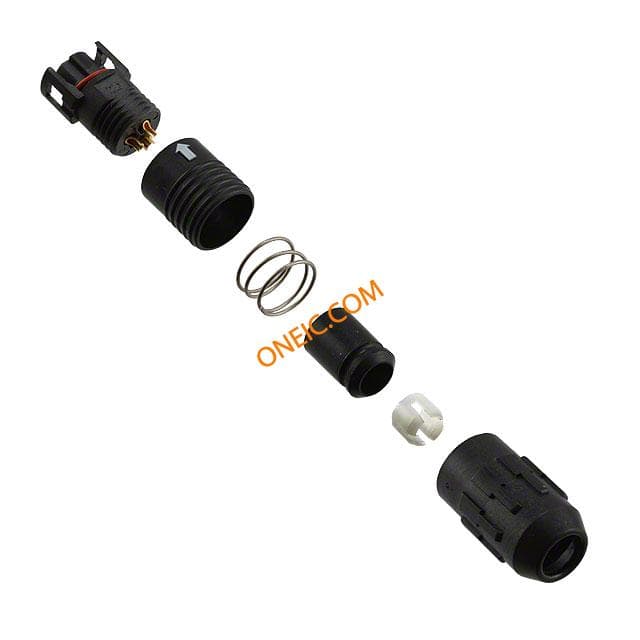

HR30-6P-3S(71)
Hirose Connector
Circular Push Pull Connectors 3P PLUG SHELL SZ 6 FEMALE TERM SOLDER CONN PLUG 3POS FEMALE SOLDER Hirose HR30 Series 3 Way Straight Male Cable Mount Miniature Connector, 5A Conn Miniature Waterproof Plastic F 3 POS Solder ST Cable Mount 3 Terminal 1 Port Cable socket 3-pin Poles=3, HR30-6P-3S(71), Hirose Hirose HR30系列 3路 直向 电缆安装 插座, 5A

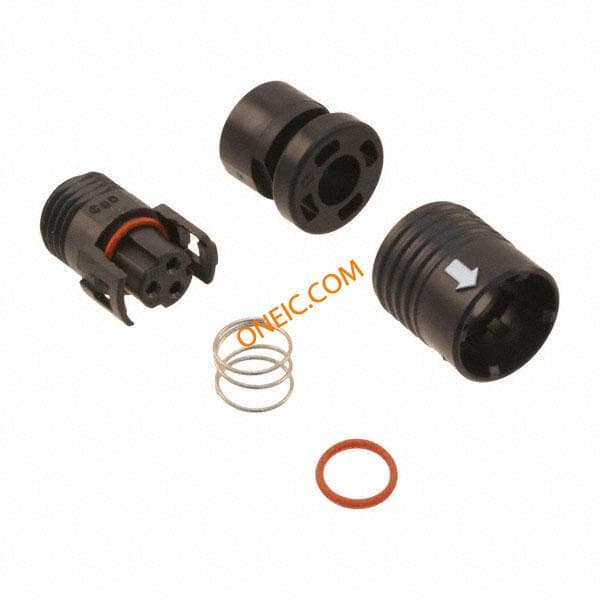

HR30-6PB-3S
