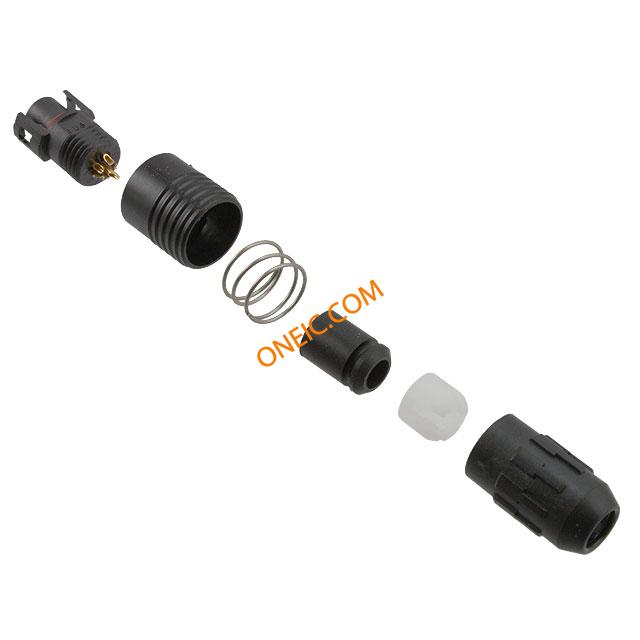

HR30-6PA-6P(71)
| Manufacturer | |
| Description | Circular Push Pull Connectors 6P PLUG SHELL SZ 6 MALE TERM SOLDER CONN PLUG 6POS MALE SOLDER Hirose HR30 Series 6 Way Straight Male Cable Mount Miniature Connector, 2A Cable plug 6-pin Poles=6, HR30-6PA-6P(71), Hirose Hirose HR30系列 6路 直向 电缆安装 插头, 2A |
| Category |
Business
| Product Category | Circular Push Pull Connectors | Standard Package | 50 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Voltage Rating | 100VAC, 140VDC | Number of Poles | 6 |
| Current Rating (Max) | 2A | Current Rating - Appliance Inlet | 2 |
Mechanical
| Packaging | Tray | Shell Size | 6 |
| Orientation | Keyed | Shell Style | Plug |
| Termination | Solder Cup | Mounting Type | Free Hanging (In-Line) |
| Shell Plating | Gold | Cable End Type | 3.5...4.3 mm |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Fastening Type | Push-Pull | Mounting Style | Cable |
| Shell Material | Plastic | Locking Feature | Push-Pull |
| Contact Material | Brass, Phosphor Bronze | Housing Material | Glass fibre (GF) |
| Termination Rows | 焊接 | Termination Style | Solder |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 6 |
| Number of Positions | 6 | Shell Size - Insert | 6 |
| 1st Connector Gender | Male | Shell Material, Finish | Polyphenylene Sulfide (PPS) |
Product Info
| Design | Cable plug | Gender | Male |
| Series | HR30 | Features | Strain Relief |
| Main Purpose | Strain Relief | Product Type | Connectors |
| Output Configuration | Free Hanging (In-Line) | ||
Environmental
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | -25°C ~ 85°C |
