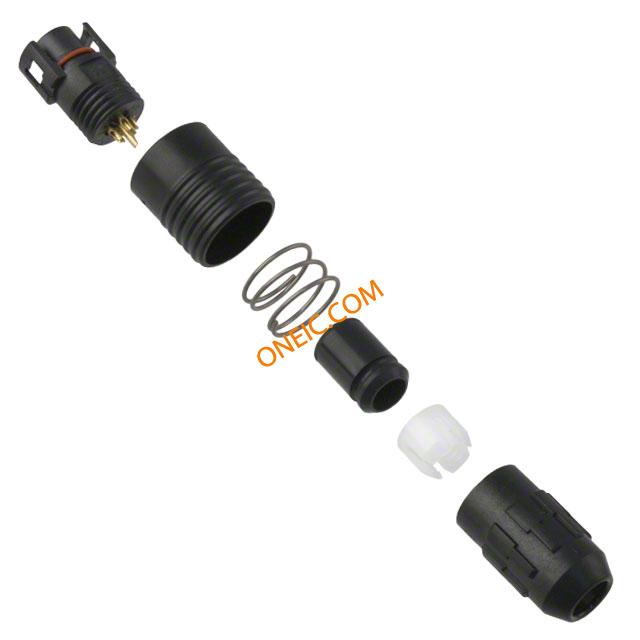

HR30-6P-6P(71)
| Manufacturer | |
| Description | Circular Push Pull Connectors 6P PLUG SHELL SZ 6 MALE TERM SOLDER CONN PLUG 6POS MALE SOLDER Hirose HR30 Series 6 Way Straight Male Cable Mount Miniature Connector, 2A Conn Miniature Waterproof Plastic M 6 POS Solder ST Cable Mount 6 Terminal 1 Port Cable plug 6-pin Poles=6, HR30-6P-6P(71), Hirose Hirose HR30系列 6路 直向 电缆安装 插头, 2A |
| Category |
Business
| Product Category | Circular Push Pull Connectors | Standard Package | 50 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Compliant | Rad Hardened | No |
Electrical
| Voltage Rating | 100VAC, 140VDC | Number of Poles | 6 |
| Current Rating (Max) | 2A | Current Rating - Appliance Inlet | 2 |
Mechanical
| Diameter | 12.6 mm | Packaging | Tray |
| Cable Exit | No | Shell Size | 6 |
| Orientation | Keyed | Shell Style | Plug |
| Termination | Solder Cup | Contact Form | 6Signal |
| Mounting Type | Free Hanging (In-Line) | Shell Plating | Gold |
| Cable End Type | 4.2...5 mm | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Fastening Type | Push-Pull |
| Mounting Style | Cable | Shell Material | Plastic |
| Locking Feature | Push-Pull | Contact Material | Brass, Phosphor Bronze |
| Housing Material | Glass fibre (GF) | Length - Overall | 30.3 mm |
| Termination Rows | 焊接 | Termination Style | Solder |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 6 |
| Number of Positions | 6 | Shell Size - Insert | 6 |
| 1st Connector Gender | Male | Shell Material, Finish | Polyphenylene Sulfide (PPS) |
Product Info
| Design | Cable plug | Gender | Male |
| Series | HR30 | DELETED | Compliant |
| Features | Strain Relief | Main Purpose | Strain Relief |
| Product Type | Connectors | RF Family/Standard | HR30 |
| Output Configuration | Free Hanging (In-Line) | ||
Environmental
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | -25°C ~ 85°C |
Documents & Media
Similar Parts
HR30-6P-T02
Hirose Connector
Circular MIL Spec Tools, Hardware & Accessories TIGHTENING COLLAR BACKSHELL 3 & 6 POS TOOL BACK SHELL TIGHTING COLLAR Circular Push Pull Connectors TIGHTENING COLLAR BACKSHELL 3 & 6 POS
.JPG&w=3840&q=75)
HR30-6R-6S(71)
Hirose Connector
Circular Push Pull Connectors 6P RECP SHELL SZ 6 FEMALE TERM SOLDER CONN RECEPT 6POS FEMALE SOLDER Hirose HR30 Series 6 Way Straight Female Panel Mount Miniature Connector, 2A Conn Miniature Waterproof Plastic F 6 POS Solder ST Panel Mount 6 Terminal 1 Port 6WFEMALERECEPTACLE Device bushing 6-pin Poles=6, HR30-6R-6S(71), Hirose Hirose HR30系列 6路 直向 面板安装 插座, 2A
HR30-6R-6SD(71)
Hirose Connector
Circular Push Pull Connectors 6P REC SHELL SZ 6 FEMALE PCB TH-HOLE CONN RECEPT 6POS FEMALE T/H Hirose HR30 Series 6 Way Straight Female Through Hole Miniature Connector, 2A Hirose HR30系列 6路 直向 通孔 插座, 2A
.jpg&w=3840&q=75)

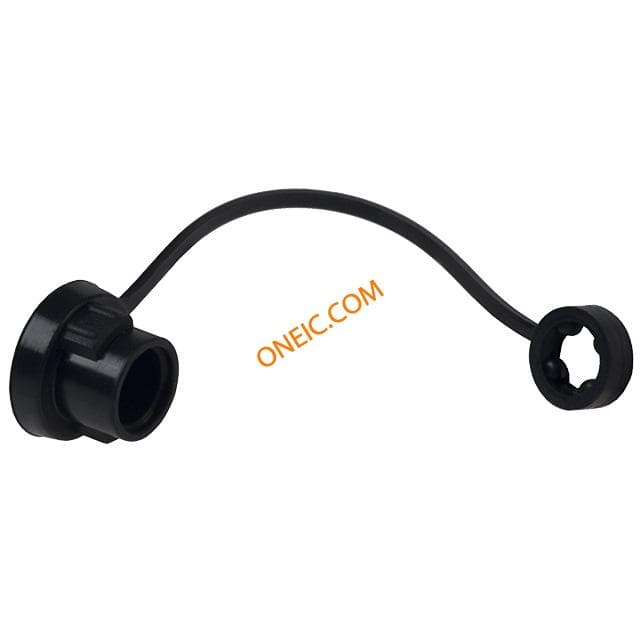

HR30-6P-C(71)
