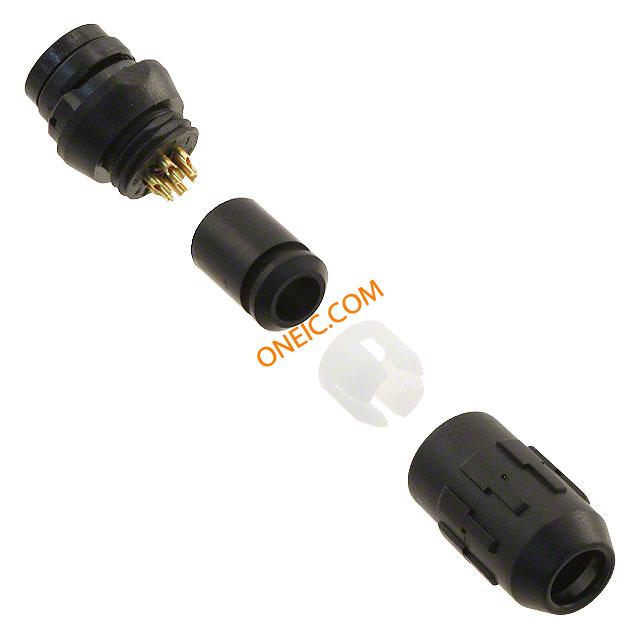

HR30-6JA-6P(71)
| Manufacturer | |
| Description | Circular Push Pull Connectors 6P JACK SHELL SZ 6 MALE TERM SOLDER CONN JACK 6POS MALE SOLDER Hirose HR30 Series 6 Way Straight Female Cable Mount Miniature Connector, 2A Coupling plug 6-pin Poles=6, HR30-6JA-6P(71), Hirose Hirose HR30系列 6路 直向 电缆安装 插头, 2A |
| Category |
Business
| Product Category | Circular Push Pull Connectors | Standard Package | 50 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Voltage Rating | 100VAC, 140VDC | Number of Poles | 6 |
| Current Rating (Max) | 2A | Current Rating - Appliance Inlet | 2 |
Mechanical
| Packaging | Tray | Shell Size | 6 |
| Orientation | Keyed | Shell Style | Jacks |
| Termination | Solder Cup | Mounting Type | Free Hanging (In-Line) |
| Cable End Type | 3.5...4.3 mm | Connector Type | Jack, Male Pins |
| Contact Finish | Gold | Fastening Type | Push-Pull |
| Mounting Style | Cable | Shell Material | Plastic |
| Locking Feature | Push-Pull | Contact Material | Brass, Phosphor Bronze |
| Housing Material | Glass fibre (GF) | Termination Rows | 焊接 |
| Termination Style | Solder | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 6 | Number of Positions | 6 |
| Shell Size - Insert | 6 | 1st Connector Gender | Male |
| Shell Material, Finish | Polyphenylene Sulfide (PPS) | ||
Product Info
| Design | Coupling plug | Gender | Female |
| Series | HR30 | Features | Strain Relief |
| Main Purpose | Strain Relief | Product Type | Connectors |
| Output Configuration | Free Hanging (In-Line) | ||
Environmental
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | -25°C ~ 85°C |
