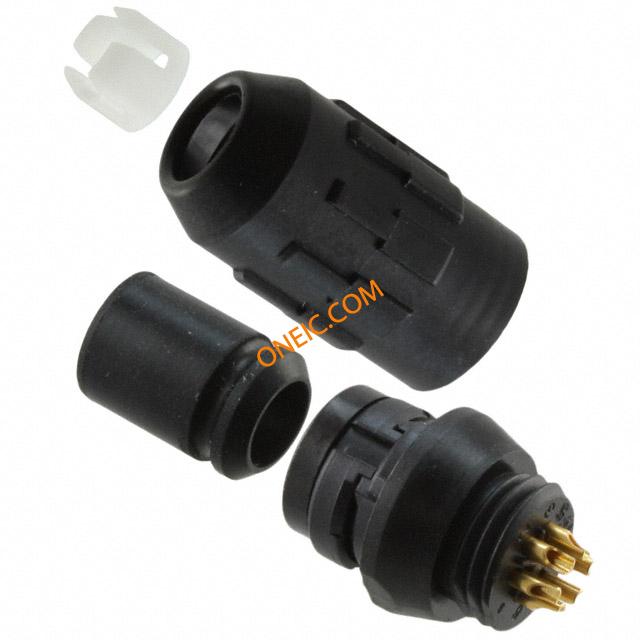

HR30-6J-6P(71)
| Manufacturer | |
| Description | Circular Push Pull Connectors 6P JACK SHELL SZ 6 MALE TERM SOLDER CONN JACK 6POS MALE SOLDER Hirose HR30 Series 6 Way Straight Female Cable Mount Miniature Connector, 2A Conn Miniature Waterproof Plastic M 6 POS Solder ST Cable Mount 6 Terminal 1 Port Coupling plug 6-pin Poles=6, HR30-6J-6P(71), Hirose |
| Category |
Business
| Product Category | Circular Push Pull Connectors | Standard Package | 50 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Compliant | Rad Hardened | No |
Electrical
| Voltage Rating | 100VAC, 140VDC | Number of Poles | 6 |
| Current Rating (Max) | 2A | Current Rating - Appliance Inlet | 2 |
Mechanical
| Diameter | 12 mm | Packaging | Tray |
| Cable Exit | No | Shell Size | 6 |
| Orientation | Keyed | Shell Style | Jacks |
| Termination | Solder Cup | Contact Form | 6Signal |
| Mounting Type | Free Hanging (In-Line) | Cable End Type | 4.2...5 mm |
| Connector Type | Jack, Male Pins | Contact Finish | Gold |
| Fastening Type | Push-Pull | Mounting Style | Cable |
| Shell Material | Plastic | Locking Feature | Push-Pull |
| Contact Material | Brass, Phosphor Bronze | Housing Material | Glass fibre (GF) |

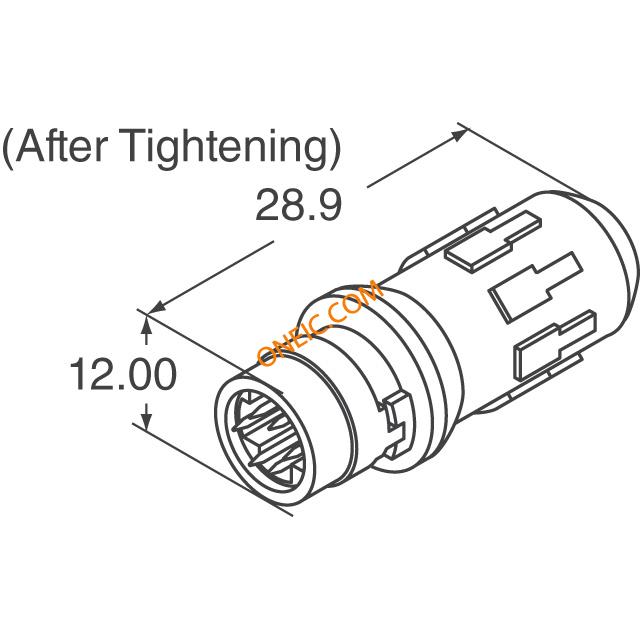

| Length - Overall | 28.9 mm | Termination Style | Solder |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 6 |
| Number of Positions | 6 | Shell Size - Insert | 6 |
| 1st Connector Gender | Male | Shell Material, Finish | Polyphenylene Sulfide (PPS) |
Product Info
| Design | Coupling plug | Gender | Female |
| Series | HR30 | DELETED | Compliant |
| Features | Strain Relief | Main Purpose | Strain Relief |
| Product Type | Connectors | RF Family/Standard | HR30 |
| Output Configuration | Free Hanging (In-Line) | ||
Environmental
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | -25°C ~ 85°C |
